RS PRO Background Suppression Photoelectric Sensor, Barrel Sensor, 1 mm → 140 mm Detection Range, Фотоэлектрический датчик

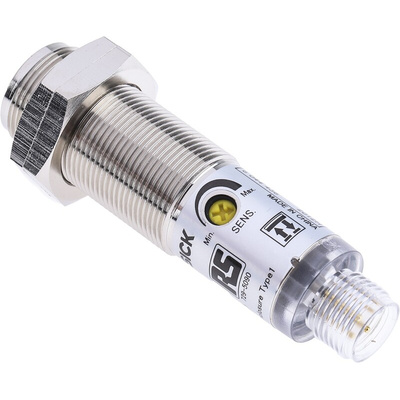

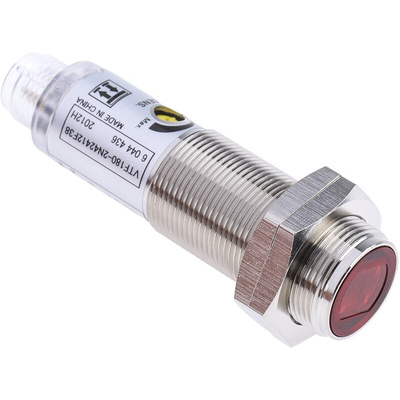

RS PRO Background Suppression Photoelectric Sensor with Barrel Sensor, 1 → 140 mm Detection Range

This photoelectric sensor from the trusted RS PRO range will distinguish and calibrate objects. It works by using a light beam and polarising filter to detect the reflective surface of the item and then align it. Background blanking technology increases the device's accuracy. This product will detect objects within a 1 mm to 140 mm range. You find this type of equipment mainly used in manufacturing.

Inside the pack, you'll find a reflector and a mounting bracket to help you install it. The retroreflective barrel sensor is housed in a nickel-plated brass body that is corrosion-resistant.

The device is CE-certified and UL-listed, and also meets standards E348498 and NRKH7 as a safe, sustainable and effective photoelectric sensor. In addition, it's IP67 rated, which means it will stay dry even when submerged under a metre of water for a full 30 minutes.

Features and Benefits

• Photoelectric sensor
• Retroreflective
• Barrel style
• 4-pin M12 connector
• Flange mounting
• LED light source
• Detection range of 50 mm to 7 m
• Phototransistor optical technology
• Retroreflective optical technology
• Maximum DC voltage of 30 V
• Maximum current of 100 mA
• Response time of 0.5 ms
• Housing material of nickel-plated brass
• IP67 rated as water-resistant
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +55˚C
• NPN output
• CE-certified and UL-listed
• Meets standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

RS PRO Factory Automation Sensors Guide
