RS PRO Background Suppression Photoelectric Sensor, Barrel Sensor, 1 mm → 140 mm Detection Range, Фотоэлектрический датчик

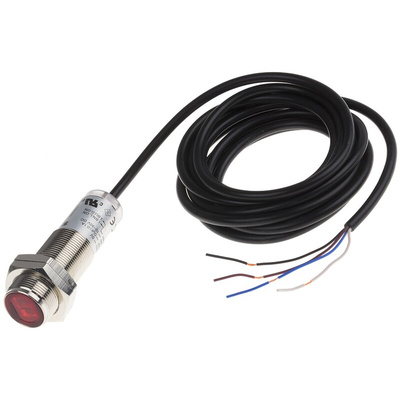

RS PRO Background Suppression Photoelectric Sensor with Barrel Sensor, 1 to 140 mm Detection Range

Looking for a diffuse photoelectric sensor that can detect virtually any object, whatever the material? This RS PRO barrel type sensor can determine the distance, absence, or presence of an object by using an adjustable light transmitter and receiver, so you can accurately control the sensing range.
The sensor has a housing made from nickel-plated brass for resistance to wear and corrosion. It has an Ingress Protection (IP) rating of IP67, which means it's shielded against dust and temporary immersion in water. It has a dual colour light-emitting diode (LED) status indication to make it easier to use and visible red light to help you align the sensor.

Features and Benefits

• Detection range of 1 to 140 mm
• Background suppression detection type
• 4-wire electrical connection
• Cable length of 2 m
• Nickel-plated brass and polycarbonate (PC) housing material
• IP (Ingress Protection) rating of IP67
• LED light source
• Maximum current of 100 mA (milliamperes)
• Maximum DC voltage of 30 V (volts)
• Maximum operating temperature of +55°C
• Minimum operating temperature of -25°C
• Flange mounting type
• Phototransistor optical technology
• Output type of NPN (Negative Positive Negative)
• Response time of less than 500 μs (microseconds)
• Barrel sensor style
• Meets CE (Conformité Européenne) and E348498, NRKH7 UL (Underwriter Laboratories) listed standards
• Complies with RoHS (Restriction of Hazardous Substances)

RS PRO Datasheet

RS PRO Factory Automation Sensors Guide
