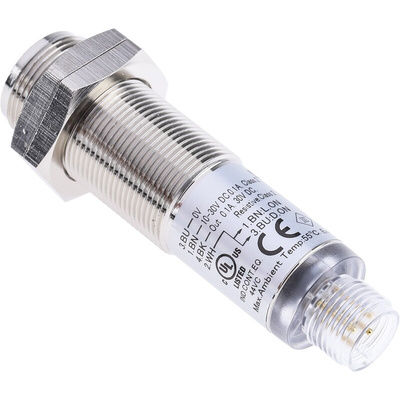

RS PRO Retroreflective Photoelectric Sensor, Barrel Sensor, 50 mm → 7 m Detection Range, Фотоэлектрический датчик

RS PRO Retroreflective Photoelectric Sensor with Barrel Sensor, 50 mm → 7 m Detection Range

Photoelectric sensors are used in industrial manufacturing by bouncing beams of light off objects in order to detect them. This retroreflective barrel sensor from the trusted RS PRO range uses a polarising filter that identifies reflective surfaces, and a red light to help it align them.

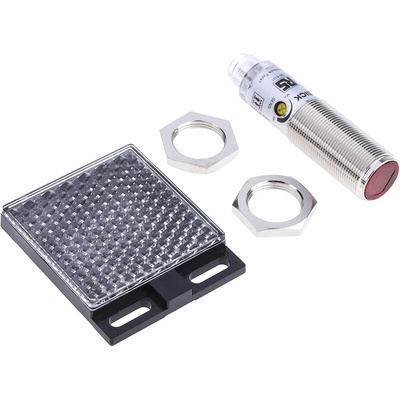

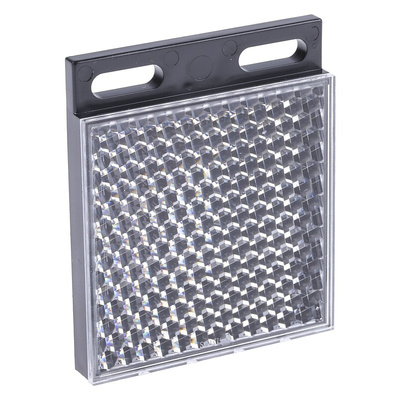

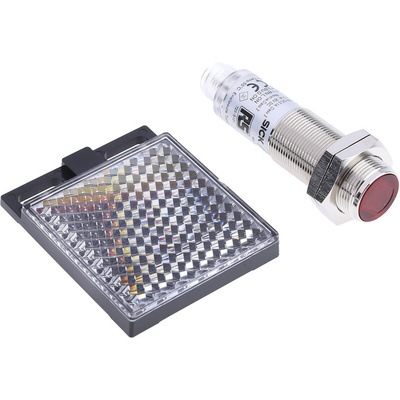

This sensor is made even more precise thanks to its background blanking technology that filters out objects beyond those being measured. Its detection range is a broad 50 mm to 7 m. With a nickel-plated brass body, it's robust and will resist corrosion. You can install it easily as it comes with a mounting bracket, and the unit includes a reflector.

IP67 rated, the product is water-resistant. In addition, it's CE-certified and UL-listed for safety and sustainability and meets standards E348498 and NRKH7 as a safe and effective photoelectric sensor.

Features and Benefits

• Photoelectric sensor
• Retroreflective
• Barrel style
• 4-pin M12 connector
• Flange mounting
• LED light source
• Detection range of 50 mm to 7 m
• Phototransistor optical technology
• Retroreflective optical technology
• Maximum DC voltage of 30 V
• Maximum current of 100 mA
• Response time of 0.5 ms
• Housing material of nickel-plated brass
• IP67 rated as water-resistant
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +55˚C
• NPN output
• CE-certified and UL-listed
• Meets standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
