RS PRO Retroreflective Photoelectric Sensor, Barrel Sensor, 50 mm → 7 m Detection Range, Фотоэлектрический датчик

7295110
Производитель: RS PRO
Цена за шт.
23849.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

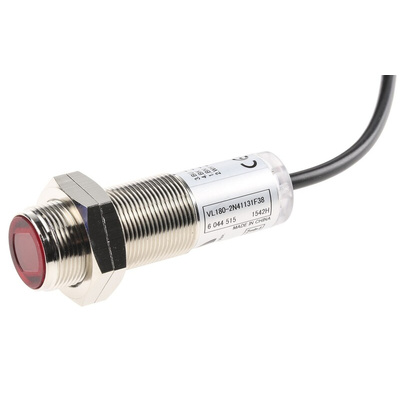

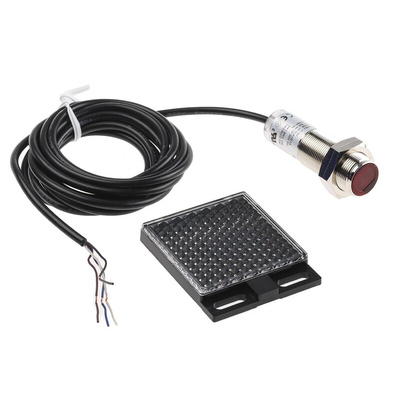

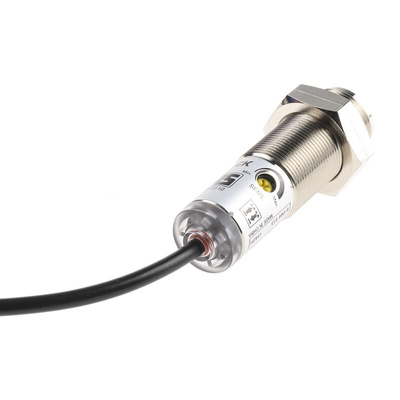

RS PRO Retroreflective Photoelectric Sensor with Barrel Sensor, 50 mm to 7 m Detection Range

Need a retroreflective photoelectric sensor for detecting a variety of objects? Choose this barrel-type sensor from RS PRO. Thanks to its broad detection range of 50 mm to 7 m, it's highly versatile and suitable for a range of applications.


The sensor is durable and long-lasting as the housing is made of nickel-plated brass and polycarbonate (PC) for resistance to wear and corrosion. You can use it in demanding industrial and outdoor environments as it's IP67 rated, meaning it's dust-tight and able to withstand temporary submersion in water. It's easy to use as the dual colour LED (light-emitting diode) indicates the sensor's status, and a visible red light makes it simple to align the sensor.

Features and Benefits


  • Detection range of 50 mm to 7 m

  • Retroreflective detection type

  • 4-wire electrical connection

  • Cable length of 2 m

  • Nickel-plated brass and polycarbonate (PC) housing material

  • IP (Ingress Protection) rating of IP67

  • LED light source

  • Maximum current of 100 mA

  • Maximum DC voltage of 30 V

  • Maximum operating temperature of +55°C

  • Minimum operating temperature of -25°C

  • Flange mounting type

  • Phototransistor optical technology

  • Output type of NPN (Negative Positive Negative)

  • Response time of less than 500 μs (microseconds)

  • Barrel sensor style

  • Meets CE (Conformité Européenne) and E348498, NRKH7 UL (Underwriters' Laboratories) listed standards

  • Complies with RoHS (Restriction of Hazardous Substances) standards

Техническая спецификация
pdfRS PRO Datasheet
pdfRS PRO Factory Automation Sensors Guide
