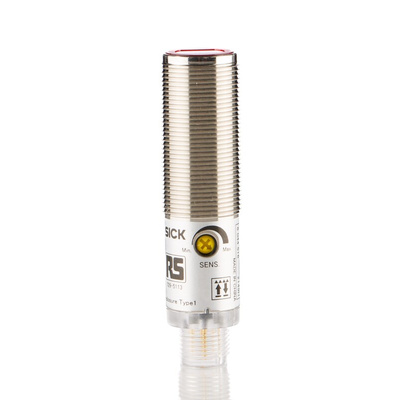

RS PRO Retroreflective Photoelectric Sensor, Barrel Sensor, 50 mm → 7 m Detection Range, Фотоэлектрический датчик

RS PRO Photoelectric Sensor Retroreflective 50 mm → 7 m Detection Range PNP

This photoelectric sensor from RS PRO can detect and measure objects simply by bouncing a beam of light off them. It has a polarising filter that can reliably detect shiny surfaces and a red light to help with alignment. Background blanking increases the sensor's accuracy. It also has a broad detection range, from 5 mm right up to 7 m.

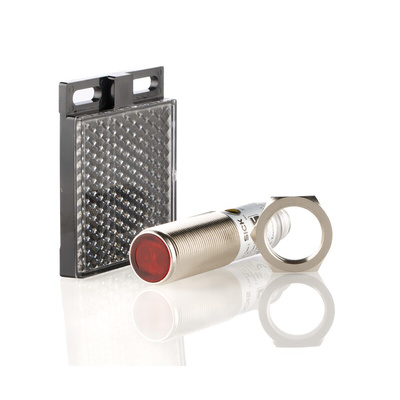

The retroreflective barrel sensor is housed in a nickel-plated brass body to resist corrosion. It's IP67 rated, which means it will stay dry even when submerged under a metre of water for a full 30 minutes. The sensor is supplied complete with a reflector and a mounting bracket.

The product is CE-certified and UL-listed for safety and sustainability and meets standards E348498 and NRKH7 as a safe and effective photoelectric sensor.

This kind of sensor is primarily used in industrial manufacturing.

Features and Benefits

• Photoelectric sensor
• Retroreflective
• Barrel style

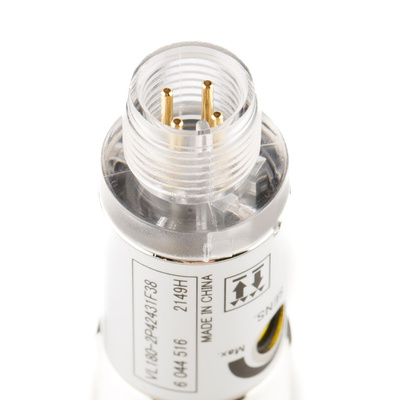

• 4-pin M12 connector
• Flange mounting
• LED light source
• Detection range of 50 mm to 7 m
• Phototransistor optical technology
• Retroreflective optical technology
• Maximum DC voltage of 30 V
• Maximum current of 100 mA
• Response time of 0.5 ms
• Housing material of nickel-plated brass
• IP67 rated as water-resistant
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +55˚C
• PNP output
• CE-certified and UL-listed
• Meets standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
