RS PRO Through Beam Photoelectric Sensor, Barrel Sensor, 28 m Detection Range, Фотоэлектрический датчик

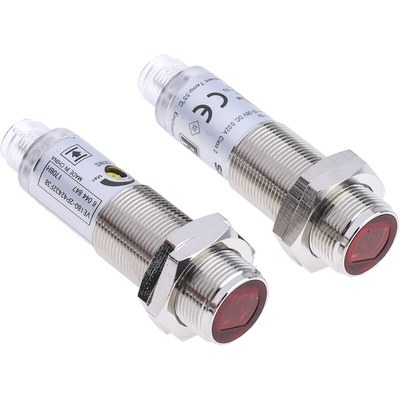

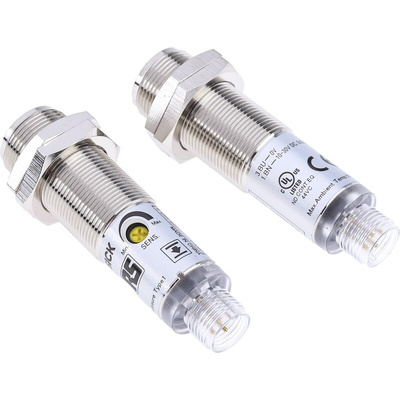

RS PRO Through Beam (Emitter) Photoelectric Sensor with Barrel Sensor, 28 m Detection Range

If you need to distinguish and calibrate objects as part of an industrial manufacturing process, for instance, consider this photoelectric sensor from the trusted RS PRO range. Using the combination of a light beam and polarising filter to detect the reflective surface of an object and then align it, it can perceive objects up to 28 m distant. Background blanking technology increases the device's accuracy.

The unit comprises a reflector and a mounting bracket to help you install it. The retroreflective barrel sensor is housed in a nickel-plated brass body that will resist corrosion.

The product is CE-certified and UL-listed, and also meets standards E348498 and NRKH7. These certifications and standards mean it's considered a safe, sustainable and effective device. In addition, it's IP67 rated, so it's water- and dirt-resistant.

Features and Benefits

• Photoelectric sensor
• Retroreflective
• Barrel style
• 4-pin M12 connector
• Flange mounting
• LED light source
• Detection range to 28 m
• Phototransistor optical technology
• Retroreflective optical technology
• Maximum DC voltage of 30 V
• Maximum current of 100 mA
• Response time of 0.5 ms
• Housing material of nickel-plated brass
• IP67 rated as water-resistant
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +55˚C
• PNP output
• CE-certified and UL-listed
• Meets standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
