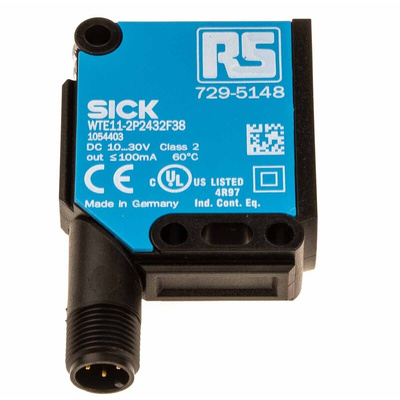

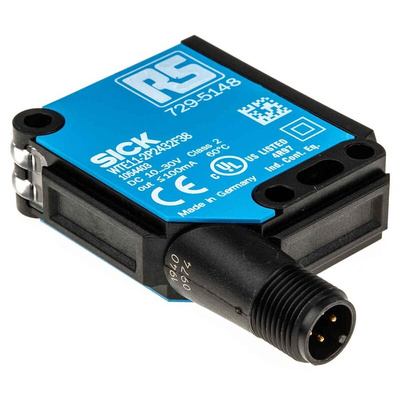

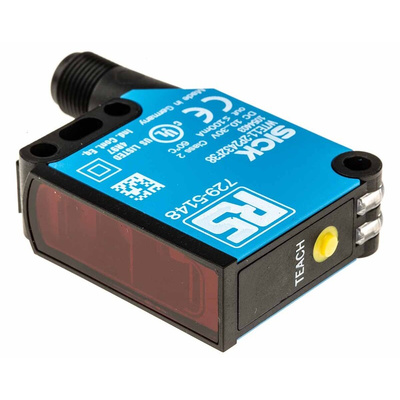

RS PRO Diffuse Photoelectric Sensor, Block Sensor, 40 mm → 1 m Detection Range, Фотоэлектрический датчик

RS PRO Photoelectric Sensor Diffuse 40 → 1000 mm Detection Range PNP

This diffuse sensor from the RS PRO range is commonly used to detect physical objects, calculate distances and measure changes in surface conditions. The primary function of this type of photoelectric sensor is to detect the presence or absence of an object. It does this by emitting a beam of electromagnetic radiation (light) and measuring alterations in the return signal (reflection).

This sensor is compact and robust, with a sturdy IP67 body that’s water-resistant and dustproof. It contains the light source and the receiver in a single package, which makes it easy to transport and install.

When the beam of light meets an object, the receiver captures the reflection and converts it into an electrical output in less than 2.5 milliseconds. Also compliant with CE and UL safety certifications, this sensor is suitable for industrial product detection or general sensing tasks.

Features and Benefits

• Block sensor style
• Diffuse detection type
• Detection range of 40 to 1000 mm
• Maximum DC voltage of 30 V
• Powerful LED light source
• Maximum current of 100 mA
• Flange mounting
• Operating temperature range of -30°C to +60°C
• Pin M12 Connector
• Standards me: CE, E348498, NRKH7, RoHS Compliant, UL Listed (NRKH)
• IP67-rated
• Phototransistor optical technology
• ABS (acrylonitrile butadiene styrene) and PMMA (polymethyl methacrylate) housing material

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

RS PRO Factory Automation Sensors Guide
