RS PRO Background Suppression Photoelectric Sensor, Block Sensor, 5 mm → 250 mm Detection Range, Фотоэлектрический датчик

RS PRO Photoelectric Sensor Background Suppression 5 → 250 mm Detection Range PNP

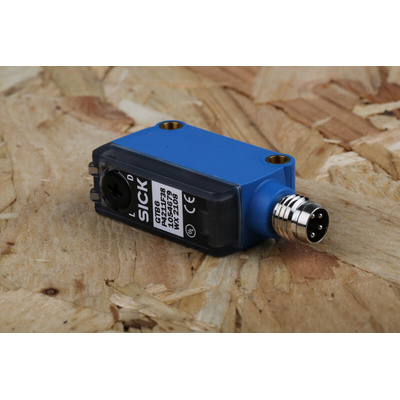

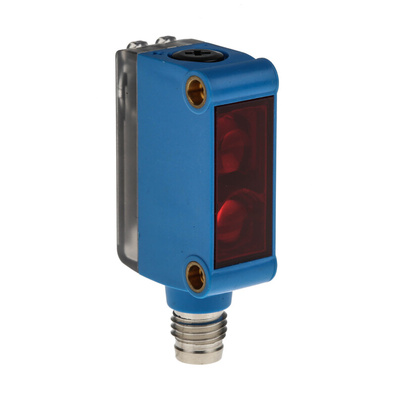

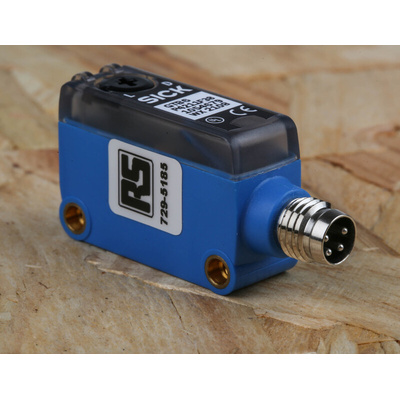

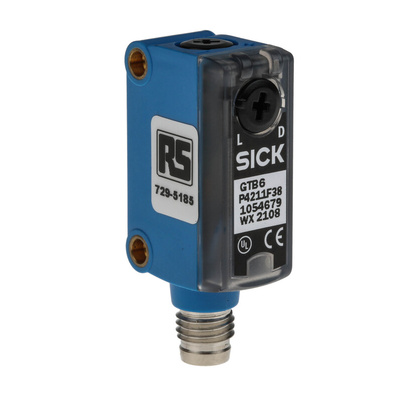

This compact photoelectric sensor from RS PRO works at close ranges and is well-suited for use in places where there's limited space.

The sensor can detect objects from 5 mm to 250 mm and has a response time of 625 μs. It's housed in durable ABS (acrylonitrile butadiene styrene) thermoplastic and polycarbonate and has an IP67 rating for water resistance.

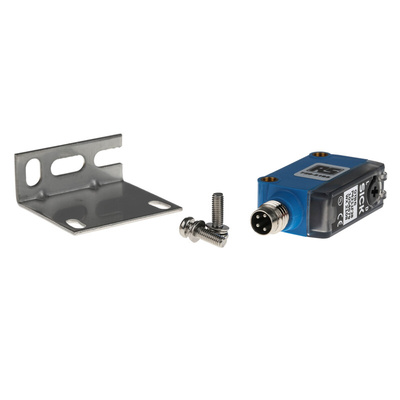

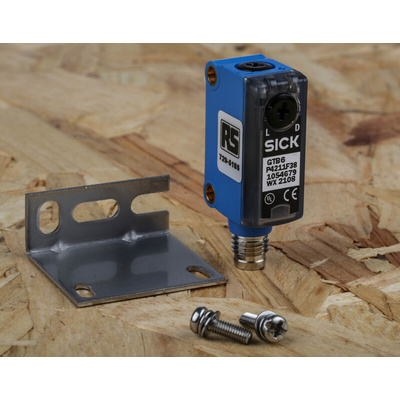

Dual LEDs indicate whether the sensor is on or off, while a visible light spot helps you to align objects. It uses a background suppression (BGS) sensing method, which prevents any background object beyond the set distance being detected. It comes with a standard 25.4 mm mounting hole spacing for easy assembly and a bracket.

The product is CE-certified and UL-listed as safe for use and conforms to standards E348498 and NRKH7 as a safe and effective photoelectric sensor.

This type of sensor is commonly used in industrial manufacturing processes.

Features and Benefits

• Photoelectric sensor
• Block style
• Background suppression type detection
• 4-pin M8 connector
• Flange mounting
• Detection range of 5 mm to 250 mm
• LED light source
• Phototransistor optical technology
• Maximum DC Voltage of 24 V
• Maximum current of 100 mA
• Response time of 625 μs
• Housing material of ABS thermoplastic and polycarbonate
• IP67 rated as water-resistant
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +55˚C
• PNP output
• CE-certified and UL-listed
• Meets standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
