RS PRO Background Suppression Photoelectric Sensor, Block Sensor, 5 mm → 250 mm Detection Range, Фотоэлектрический датчик

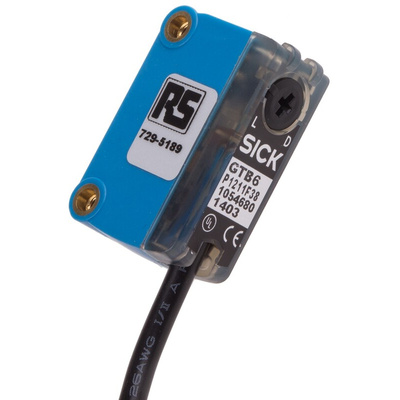

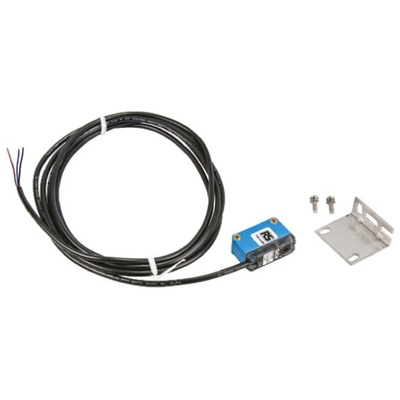

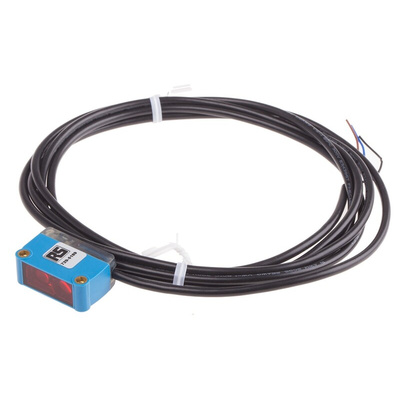

RS PRO Background Suppression Photoelectric Sensor with Block Sensor, 5 to 250 mm Detection Range

Looking for a sensor to detect objects? Try this background suppression block-type sensor from RS PRO. It can detect objects in close proximity to one another without detecting the background material and precisely controls the sensing range for greater accuracy.


The sensor is tough and resistant to abrasion as the housing is made of polycarbonate (PC) and acrylonitrile butadiene styrene (ABS) material. This makes it suitable for installation in demanding industrial environments. It also has an Ingress Protection (IP) rating of IP67, so it's protected against dust and short-term submersion in water.


As the transmitter and receiver are contained in a single housing, it's easy to mount. The visible red light also helps you to align the sensor. Its quick response time and adjustable sensitivity make it suitable for a range of applications.

Features and Benefits

• Detection range of 5 to 250 mm


• Background suppression detection type


• Electrical cable connection


• ABS (acrylonitrile butadiene styrene), PC (polycarbonate) housing material


• IP (Ingress Protection) rating of IP67


• Maximum current of 100 mA


• Maximum DC voltage of 24 V


• Maximum operating temperature of +55°C


• Minimum operating temperature of -25°C


• Flange mounting type


• LED (light-emitting diode) and phototransistor optical technology


• Output type of PNP (Positive-Negative-Positive)


• Response time of 625 μs (microseconds)


• Block sensor style


• Meets CE (Conformité Européenne) and E348498, NRKH7 UL (Underwriters' Laboratories) listed standards


• RoHS (Restriction of Hazardous Substances) compliant
