RS PRO Retroreflective Photoelectric Sensor, Block Sensor, 7.2 m Detection Range, Фотоэлектрический датчик

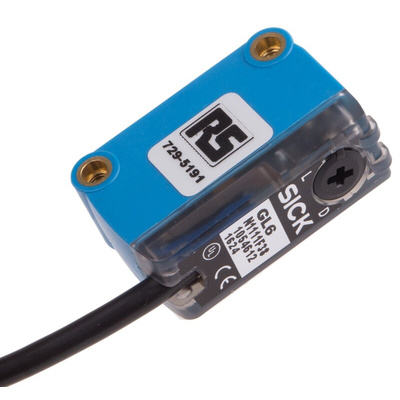

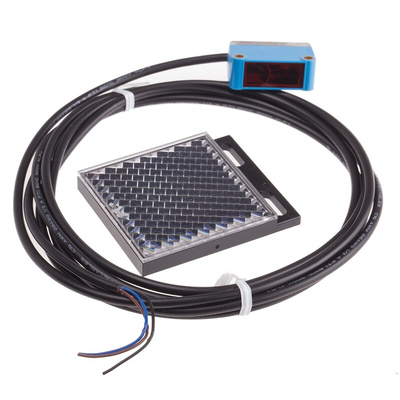

RS PRO Retroreflective Photoelectric Sensor with Block Sensor, 7.2 m Detection Range

Looking for a retroreflective photoelectric sensor with a long detection range? Try this one from RS PRO. It has a detection range of 7.2 m, so it's highly versatile and suitable for a wide range of applications.


Thanks to the housing's ABS (acrylonitrile butadiene styrene) and PC (polycarbonate) construction, it's highly durable and resistant to abrasion and impact. It's also protected against dust and temporary submersion in water as it has an Ingress Protection (IP) rating of IP67. This means it's ideal for installation in tough working environments.


The device's quick response time makes it a good choice for a variety of applications. There's also a highly visible red light that enables you to align the sensor accurately.

Features and Benefits

• Detection range of 7.2 m


• Retroreflective detection type


• Electrical cable connection


• ABS (acrylonitrile butadiene styrene), PC (polycarbonate) housing material


• IP (Ingress Protection) rating of IP67


• Maximum current of 100 mA


• Maximum DC voltage of 24 V


• Maximum operating temperature of +55°C


• Minimum operating temperature of -25°C


• Flange mounting type


• LED (light-emitting diode) and phototransistor optical technology


• Output type of NPN (Negative-Positive-Negative)


• Response time of 625 μs (microseconds)


• Block sensor style


• Meets CE (Conformité Européenne) and E348498, NRKH7 UL (Underwriters' Laboratories) listed standards


• RoHS (Restriction of Hazardous Substances) compliant
