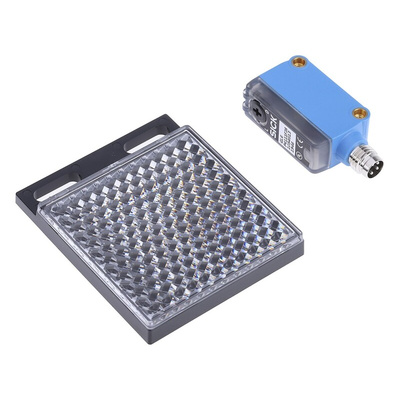

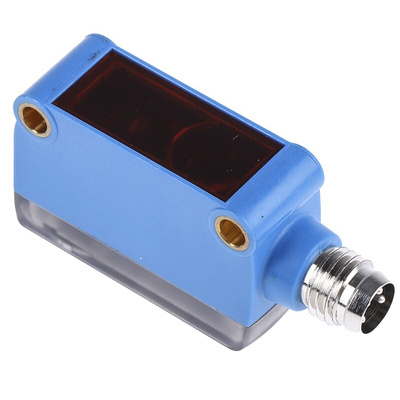

RS PRO Retroreflective Photoelectric Sensor, Block Sensor, 5 m Detection Range, Фотоэлектрический датчик

RS PRO Retroreflective Photoelectric Sensor with Block Sensor, 7.2 m Detection Range

This photoelectric sensor from RS PRO will detect objects up from 50 mm to 7.2 m using a visible light to spot and align them. With a response time of 625 μs, it's extremely efficient. Housed in durable ABS (acrylonitrile butadiene styrene) thermoplastic and polycarbonate, you can expect this product to stand up to the wear and tear expected from industrial use.

You can tell whether the sensor is operating thanks to the dual LEDs. It eliminates background objects beyond the set distance using the background suppression (BGS) method. The standard 25.4 mm mounting hole spacing and bracket mean you can assemble it easily.

As it's IP67 rated, you'll find it's water-resistant. It's also safe to use thanks to the CE and UL certifications. It conforms to standards E348498 and NRKH7 as a safe and effective photoelectric sensor. This type of sensor is commonly used in industrial manufacturing processes.

Features and Benefits

• Photoelectric sensor
• Block style
• Background suppression type detection
• 4-pin M8 connector
• Flange mounting
• Detection range of 50 mm to 7.2 m
• LED light source
• Phototransistor optical technology
• Maximum DC Voltage of 24 V
• Maximum current of 100 mA
• Response time of 625 μs
• Housing material of ABS thermoplastic and polycarbonate
• IP67 rated as water-resistant
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +55˚C
• PNP output
• CE-certified and UL-listed
• Meets standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
