RS PRO Retroreflective Photoelectric Sensor, Block Sensor, 7.2 m Detection Range, Фотоэлектрический датчик

RS PRO Retroreflective Photoelectric Sensor with Block Sensor, 7.2 m Detection Range

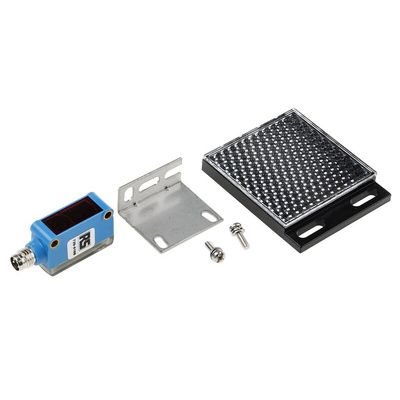

Need a reliable sensor for detecting objects? Turn to this retroreflective photoelectric sensor from RS PRO. It's supplied with a bracket, making it easy to mount.


The component is highly durable and resistant to impact and abrasion thanks to the housing's acrylonitrile butadiene styrene (ABS) and polycarbonate (PC) material. It's suitable for use in harsh environments as it has an Ingress Protection (IP) rating of IP67, meaning it's dust-proof and can withstand short-term submersion in water.


The visible red light helps you align the sensor with ease. Thanks to its quick response time, it's suitable for use in a range of applications.

Features and Benefits

• Detection range of 7.2 m


• Retroreflective detection type


• 4-pin M8 connector electrical connection


• ABS (acrylonitrile butadiene styrene), PC (polycarbonate) housing material


• IP (Ingress Protection) rating of IP67


• Maximum current of 100 mA


• Maximum DC voltage of 24 V


• Maximum operating temperature of +55°C


• Minimum operating temperature of -25°C


• Flange mounting type


• LED (light-emitting diode) and phototransistor optical technology


• Output type of NPN (Negative-Positive-Negative)


• Response time of 625 μs (microseconds)


• Block sensor style


• Meets CE (Conformité Européenne) and E348498, NRKH7 UL (Underwriters' Laboratories) listed standards


• RoHS (Restriction of Hazardous Substances) compliant

RS PRO Datasheet

RS PRO Factory Automation Sensors Guide
