RS PRO Retroreflective Photoelectric Sensor, Block Sensor, 7.2 m Detection Range, Фотоэлектрический датчик

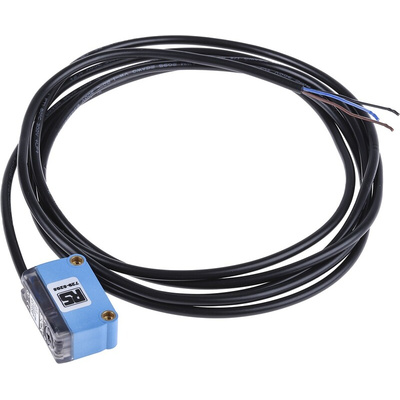

RS PRO Retroreflective Photoelectric Sensor with Block Sensor, 7.2 m Detection Range

This retroreflective photoelectric sensor from RS PRO can detect objects up to 7.2 m away. It's encased in durable ABS (acrylonitrile butadiene styrene) thermoplastic and polycarbonate and is water-resistant.

You can tell whether the sensor is operating thanks to two LED lights. It incorporates background suppression (BGS) technology that filters out any background object beyond the set distance, while a visible light spot aligns the items detected. Easy to install, it comes with a bracket and a standard 25.4 mm mounting hole spacing. The unit's response time is 625 μs.

An IP67 rating certifies the product's resistance to water. It's CE-certified and UL-listed as safe to use and conforms to standards E348498 and NRKH7 as a safe and effective photoelectric sensor. This type of sensor is commonly used in industrial manufacturing processes.

Features and Benefits

• Photoelectric sensor
• Block style
• Background suppression type detection
• 4-pin M8 connector
• Flange mounting
• Detection range of 7.2 m
• LED light source
• Phototransistor optical technology
• Maximum DC Voltage of 24 V
• Maximum current of 100 mA
• Response time of 625 μs
• Housing material of ABS thermoplastic and polycarbonate
• IP67 rated as water-resistant
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +55˚C
• PNP output
• CE-certified and UL-listed
• Meets standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

RS PRO Factory Automation Sensors Guide
