046562-3001, Molex EXTreme Ten60Power Series Straight Through Hole Mount PCB Socket, 28-Contact, 3-Row, 2.54mm Pitch, Press-Fit

EXTreme Ten60Power™ High-Current Vertical Connectors- 46562 Series

These EXTreme Ten60Power™ High-Current Vertical Connectors give hybrid power and signal contacts in a single connector for right angle board-to-board applications.

Note

For mating right angle Ten60Power connectors see stock number 729-6053 typical.

Molex EXTreme Ten60Power Hybrid Power and Signal Connectors

EXTreme Ten60Power hybrid power and signal connectors designed for use in board to board, wire to board and panel to board applications. These hybrid power connectors feature high current contact blades with a robust design and a 7.5 mm power pitch. These contacts provide 50 A of current per blade (260 A per linear pitch) with fast response times. Resistance to arcing in hot pluggable applications prevents electrical interruptions. These EXTreme Ten60Power hybrid power and signal connectors have an easy to configure modular design offering design flexibility for a wide range of power and signal requirements

Vert Recpt Assy 4P-24S Press Fit TEN60 Power Family Drawing

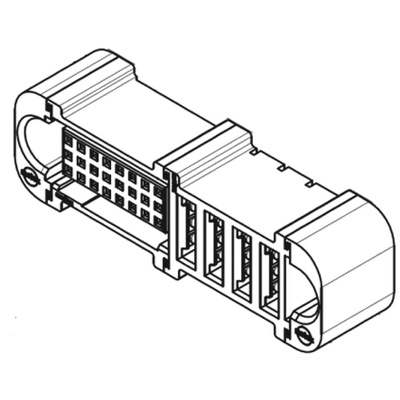

Line Drawing
