5320 PJP 075 S70 M10x15 (Levina), Tente Swivel Stem Swivel Castors, 75kg Load Capacity, 75mm Wheel Diameter, Ролик

Institutional Castor - Synthetic, Series 5320

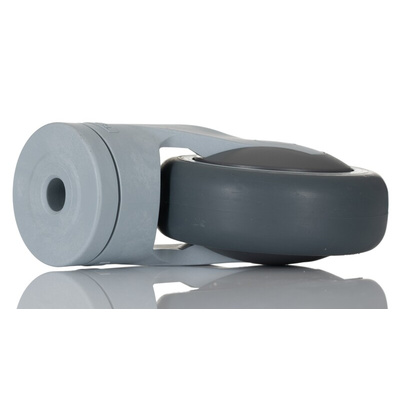

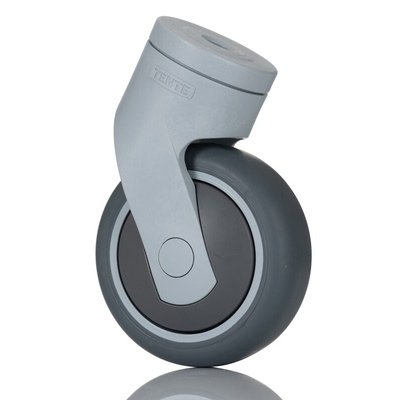

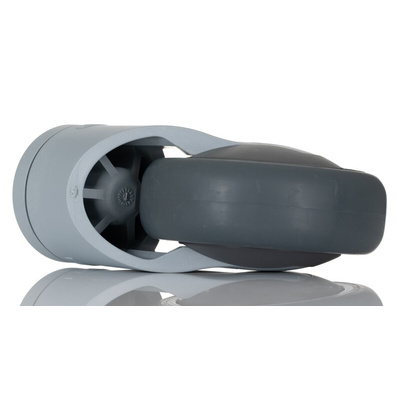

Tente Series 5320 LEVINA single-wheel bolt-hole castors are manufactured from high grade synthetic materials that are generally resistant to all detergents and disinfectants currently available. They incorporate a double ball bearing precision swivel head, and grey TENTEprene (thermoplastic rubber) non-marking tyre. M10 bolts are included with the LEVINA castors which can be removed without removing the castor wheel. The polypropylene wheel castors can accept a static load of 150kg, and a dynamic load of 75kg.

Tente Swivel Castors

This 5320 PJP 075 S70 M10x15 (Levina) is a swivel castor.

Features and Benefits

• 75 mm wheel diameter
• 103 mm overall height
• Load capacity 75 kg
• Polyamide housing material
• Slim shape of fork
• Stem, swivelling bearings
• Swivel castor
• Polypropylene wheel body
• Injected rubber tread
• Precision ball bearing

Standards

EN 12530

Tente castors provide an optimal balance between application, design and technology. The single-wheel LEVINA castor range offers a high degree of resistance to environments where detergents and disinfectants may pose a problem, making use of high-grade synthetic materials throughout. LEVINA castors are available as solid plug, M10 or M12 threaded plug, or screw plate versions. Bolthole versions are designed to allow the bolts to be inserted separately at a later time.

Double-wheel Tente LINEA castors ideally suit hospital and care home beds, where the level of comfort and safety required is of paramount importance. The LINEA castors are unique in offering a design where the wheels are only a fraction below the overall height of the entire castor. The elegant, clean design of the LINEA castors enable them to be fitted to beds and other medical equipment, where the overall height is kept as low as possible, to maintain overall patient comfort.
