FTDI Chip Mini-Module Development Board FT4232H MINI MODULE

FTDI Chip USB Hi-Speed Development Board

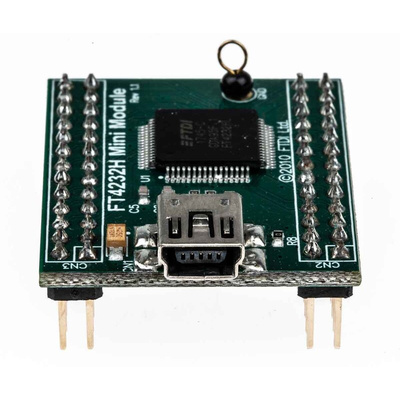

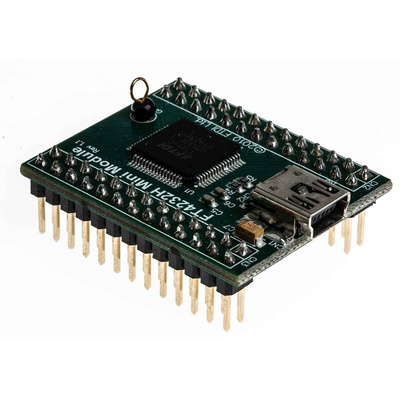

The FTDI Chip USB Hi-Speed development board is a USB-serial/FIFO mini-module in the FTDI product range, which utilizes the FT4232H USB hi-speed 4-port bridge chip to handle all the USB signalling and protocols. It is ideal for development purposes to quickly prove the functionality of adding USB to a target design. This device features four interfaces that can be configured for asynchronous or synchronous serial or parallel FIFO interfaces. Two of these have an option to independently configure an MPSSE engine. This allows the FT4232H to operate as two UART/Bit-Bang ports plus two MPSSE engines used to emulate JTAG, SPI, I2C, Bit-bang or other synchronous serial modes.
It connects the signals of the IC to two 26-pin dual-row headers which allow easy connection PCB header sockets and ribbon cables.
Versions Available:
(730-0142) - USB to Serial/FIFO (Dual) - FT2232H MINI MODULE
(730-0146) - USB to Serial/FIFO (Quad) - FT4232H MINI MODULE
(111-5835) - USB to Serial/FIFO (Dual) - FT2232H-56Q MINI MODULE
(111-5836) - USB to Serial/FIFO (Quad) - FT4232H-56Q MINI MODULE

Features and Benefits

USB 2.0 hi-speed compatible
Reduced development time
Rapid integration into existing systems
USB powered, no external power supply needed
Entire USB protocol handled by the USB module
Small USB Type-B connector common on many commercial devices
Asynchronous Serial data transfer rates from 300baud to 12Mbaud at TTL levels
Synchronous Serial (MPSSE) data rates of up to 30Mbps on JTAG, SPI and I2C
Support for USB suspend and resume
UHCI/OHCI/EHCI host controller compatible
Operating temperature ranges between -40°C and 85°C

Applications

Rapid USB integration into existing electronic systems
Prototyping platform for USB interface on new systems
USB to multi-port JTAG, SPI and I2C interfaces
USB to multi-port asynchronous serial interfaces (up to 4 ports available)
