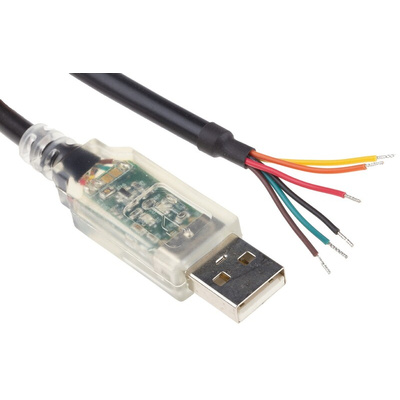

FTDI Chip, 5 V TTL Wire End USB to UART Cable - TTL-232RG-VSW5V-WE

FTDI Chip USB To UART Cable

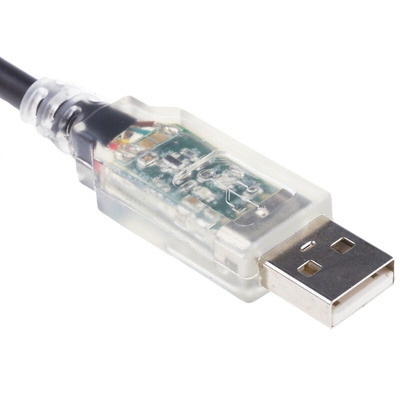

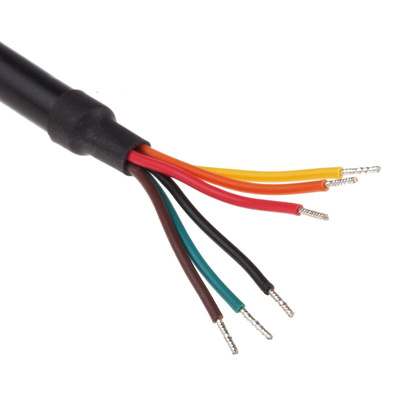

The FTDI chip USB to UART cable is a fast and simple way to connect devices with a TTL level serial interface to USB. It is available with TTL logic level of 5V. Each cable contains a small internal electronic circuit board, utilising the FT232R, encapsulated into the USB connector at the end of the cable. The cable has a gauge of 24AWG and diameter of 5mm. They are un-terminated, bare and tinned wires. The circuit is powered from the USB using 5V power pins and any VCC connection, always at 5VDC. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux.

Features and Benefits

Connect directly to a microcontroller UART or I/O pins
Data transfer rate is up to 3Mbps
Generic converter cable provides a USB to TTL Serial interface with various logic levels
Low USB bandwidth consumption
Maximum output of 450mA on VCC
Operating temperature ranges between -40°C and 85°C
Powered from USB connector

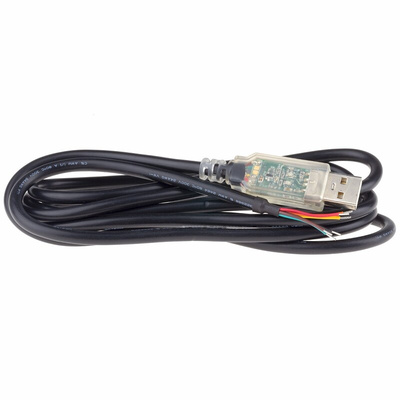

Six core cable with length of 1.8m
Unique serial number attached, used for security purposes while transferring files via cable
USB 2.0 compatible
Various UART-end connector options available

Applications

Communication
Embedded system

Certifications

CE
FCC certified

TTL-232RG Series Datasheet
