T0053420399N, Weller WX 2 Soldering Station 200W, 230V, Паяльная станция

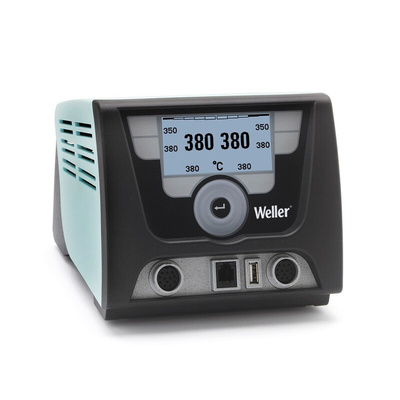

Weller WX 2 Soldering Station Control Unit

Introducing the Weller WX 2021 Soldering Station. It is an easy-to-use, professional soldering station kit offering high power and reliability. The WX 2 is a 230V control unit with 2 channels, so you can use 2 independent 120W soldering irons. The unit ensures maximum temperature stability and accuracy with a ±2ºC temperature stability and a temperature accuracy of ±9ºC. The Weller WX 2 features a high-quality touchscreen display made of glass. From here you can choose your custom settings. There is also a click wheel and a confirm button. There is also a USB port for parameter configuration and data logging. This USB port supports all standard USB sticks. The WX 2 soldering station is also ESD safe.
Note: Weller WX 2 Soldering Station (730-0717) is a Soldering Station Unit only. For complete set please, see RS stock number 730-0714.

Features and Benefits:

• High Powered Dual Port Digital Power Unit, 120 V /240W
• Very fast heat-up time

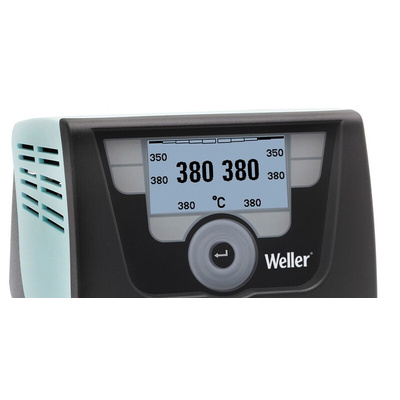

• Robust, chemical and temperature resistant glass touchscreen with multilingual menu
• Turn-and-click wheel with entering key
• 6 touch keys
• Automatic recognition of tool connected

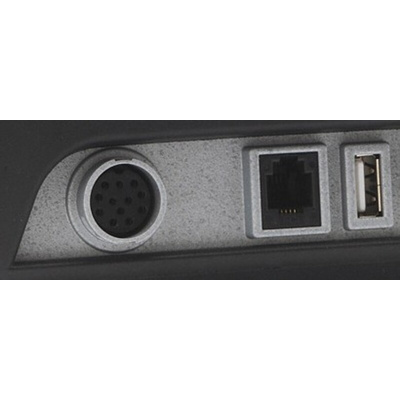

• Multi-purpose USB port for data logging, configuration and updates
• Versatile Connectivity Options for heating plates, fume extraction, etc.
• Compatible with All WX Series Soldering Pencils
• Compatible with WXMT-ms Desoldering Tweezers
• ESD Safe
• Supplied with a UK and Euro plug

Typical Applications:

Soldering Stations are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering Stations are often used by:
• Engineers
• Electricians
• Metalworkers
• Jewellers
• Home inventors

FAQs:

Does it include a soldering iron?
No, the WX 2 (730-0717) is the control unit only. It is compatible with the WXP200, WXP120, WXMP soldering pencils and WXMT Tweezers from Weller. These can be purchased separately:
• WXMP Solderin Iron Kit - 730-0745
• WXMT Soldering Tweezers Kit - 730-0726
• WXMT Soldering Tweezers - 730-0723
For complete set including soldering irons & tweezers please, visit 730-0714.
How fast does it heat up?
This soldering iron heats up extremely fast. It can be used immediately.
Where is it used?
The WX 2 soldering station can be used in many manual soldering applications, including automotive, aerospace and medical industries.
How energy efficient is it?
The WX 2 has a built-in sensor which is motion activated. This allows it to only use power when it is being used. If they aren't in use, they automatically go into standby mode.
What language is it?
Within the menu navigation, you are able to make your choice of language.
How big is it?
WX 2 soldering station dimensions: 174 x 154 x 135 mm / 6.85 x 6.06 x 5.31 inches
