RS PRO Cotton, PET Pleated Panel Filter, G4 Grade, 8 MERV Rating, 594 x 594 x 95mm, Фильтр

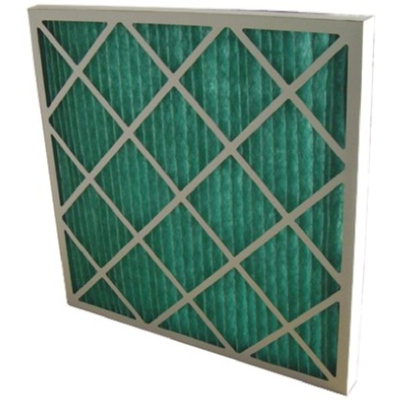

RS PRO Pleated Panel Filter, Cotton, PET Media, G4 Grade, 594 x 594 x 95 mm

This RS PRO pleated panel filter works as part of your ventilation system to efficiently filter debris from the air. It's designed to operate under the most testing conditions and features an extra-high media pleat count to trap airborne particles before they get into your equipment.
The filter's high pleat count (15 pleats per 300 mm) also increases its surface area and density without reducing the ventilator's airflow or efficiency. The thick loft and high weight polyester (PET) media prevent particles from passing.
Each product is packed into an AquaKote® frame. This means it's water-repellent and suitable to use in humid areas. Its tear resistance technology also prevents breakage when wet or dry.

Features and Benefits

• Actual height of 594 mm
• Actual width of 594 mm
• Actual depth of 95 mm
• Actual dimensions of 594 (H) x 594 (W) x 95 (D) mm
• Nominal height of 24 in
• Nominal width of 24 in
• Nominal depth of 4 in
• Nominal dimensions of 24 (H) x 24 (W) x 4 (D) in
• Green colour
• G4 filter grade
• Filter merv rating of 8
• Pleated panel filter type
• Final pressure drop of 200 Pa
• Initial pressure drop of 45 Pa
• Maximum airflow of 3400 m≥/h
• Cotton, PET media material

RS Pro Datasheet
