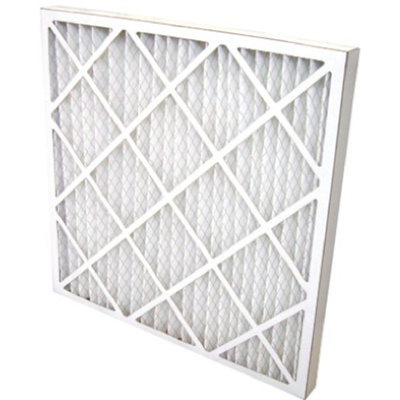

RS PRO Intrepid Pleated Panel Filter, G4 Grade, 8 MERV Rating, 368 x 368 x 45mm, Фильтр

RS PRO Pleated Panel Filter, Intrepid Media, G4 Grade, 368 x 368 x 45 mm, 8

If you need to keep dirt and debris out of your heating, venting and air conditioning (HVAC) systems, choose this pleated panel filter from RS PRO. You can use it for both filtration and pre-filtration as it traps airborne particles before they can damage your equipment.


The unit is made with the patented Kimberly Clark Intrepid® filter media. This material features low airflow resistance, resulting in energy savings of up to 40%. The media is bonded to a tear-resistant, water-repellent AquaKote® card frame, making the filter less susceptible to damage and helping it last longer.


The panel filter's graduated density helps the dirt spread evenly. This prevents clogging and gives the unit a greater holding capacity.

Features and Benefits

• Actual dimensions of 368 (height) x 368 (width) x 45 mm (depth)


• Nominal dimensions of 15 (height) x 15 (width) x 2 in (depth)


• White colour


• G4 filter grade


• Filter MERV rating of 8


• Final pressure drop of 250 Pa


• Initial pressure drop of 47 Pa


• Maximum air flow of 975 m³/h
