7TCA296060R0125 XF25/M25/D, Adaptaflex Straight, Conduit Fitting, 25mm Nominal Size, M25, Nylon 66, Black

Adaptaflex Conduit Fitting, IP65 Rating, UV-Resistant - XF Series - XF25/M25/D

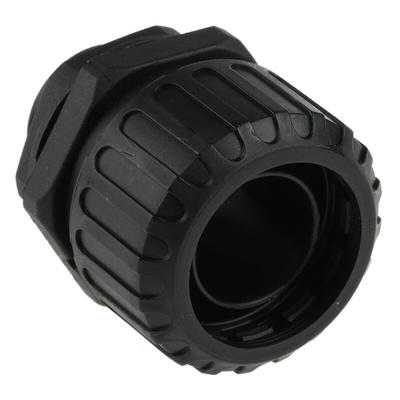

Make fast connections with this conduit fitting from Adaptaflex. It's threaded on both ends, giving you a simple way to attach conduits to panel and junction box entries. A 15.5mm thread length and a locking nut keep your conduits secure, so you can use this fitting with static and moving applications. As it simply screws in, you can complete your cable protection system with minimal tools. A nominal size of 25mm means the fitting is compatible with Xtraflex XF conduits (such as 731-4258). The strong polyamide 66 construction stands up to wear, impacts and oils, ensuring it's right at home in challenging industrial environments.

Features & Benefits

• Free from metal so it won't corrode in moist and humid environments
• Static operating temperature between -20°C and +60°C means it stands up to outdoor applications and hot machines

Applications

• Factory automation
• Milling machines
• Hoists and cranes
• Marine and offshore industries
• Construction sites

Can I use this conduit fitting in dusty conditions?

Yes. The conduit fitting comes with an IP65 rating, so you can be sure your wires are protected against dust and jets of water from any angle.

XF -XTRAFLEX Data Sheet

Catalogue - Flexible Non-metallic Conduit Systems
