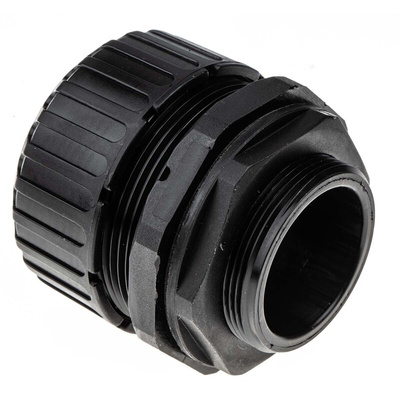

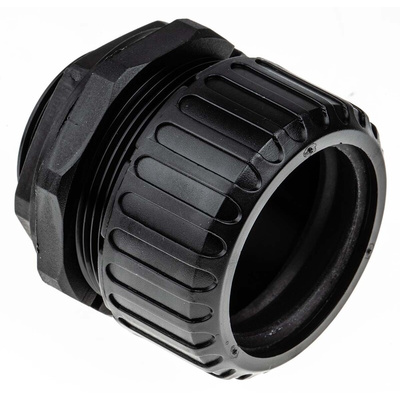

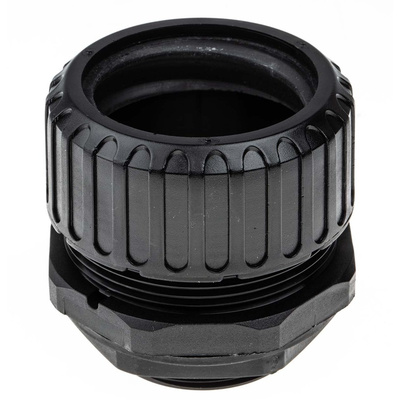

7TCA296060R0144 XF40/M40/D, Adaptaflex Straight, Conduit Fitting, 40mm Nominal Size, M40, Nylon 66, Black

Adaptaflex Conduit Fitting, IP65 Rating, 58mm Length - XF Series - XF40/M40/D

Keep your cables under wraps with this conduit fitting from Adaptaflex. As it's threaded, you can simply screw it in place, speeding up your installation jobs. A locknut is on hand to stop attached conduits from twisting and pulling free from the holes in your panels and junction boxes. Built with polyamide 66, the unit's strong and resistant to impacts and wear. This makes it a good choice for use around moving machinery. An IP65 rating ensures your cable connections stay free from dust contamination and are protected against jets of water.

Features & Benefits

• Safe for operation at temperatures up to +60°C, so it can take the heat of manufacturing machines
• Non-metallic construction is resistant to corrosion, for use in moist and humid conditions
• Shrugs off damage from oils and chemicals, meaning it's well-suited to industrial environments

Applications

• Industrial automation
• Plant machinery
• Security systems
• Communication networks

What type of conduit can I use this fitting with?

This conduit fitting works reliably with Adaptaflex's XF range. As the fitting has a nominal size of 40mm and minimum bore of 32mm, the PVCu 5m (731-4261), 10m (731-4252) and 30m (731-4249) conduits are a good match.

XF -XTRAFLEX Data Sheet

Catalogue - Flexible Non-metallic Conduit Systems
