RS PRO 75W Plug-In AC/DC Adapter 24V dc Output, 3.125A Output, Блок питания

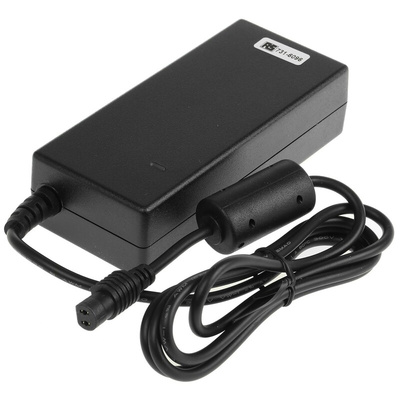

RS PRO 24 V DC Power Supply, 75 W, 3.125 A, C8 Connector

This RS PRO switch-mode power supply (SMPS) uses a capacitor to convert AC inputs to a 24 V DC output. It consumes little energy while providing 75 W of continuous power to your equipment.

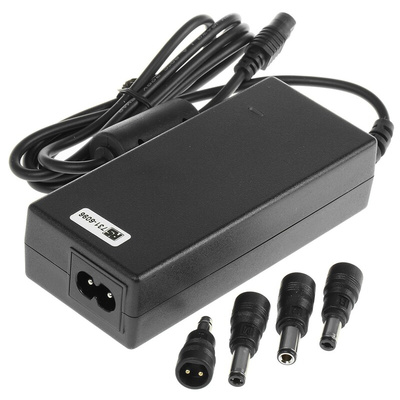

The unit has four interchangeable DC plugs and a standard C8 connection, so it works with a range of devices. It suits most devices and regions thanks to its wide input range of 100 to 240 V AC. To ensure safety, this SMPS protects against overcurrent, overvoltage, overload and short-circuits.

Features and Benefits

• Four centre positive female coaxial plugs (1.75 x 4.75 x 11 mm, 2.1 x 5.5 x 10.5 mm, 2.5 x 5.5 x 12.5 mm, 3 x 6.3 x 12 mm)
• IEC 320-C8 input connector
• Input frequency range of 50 to 60 Hz
• Maximum input current of 1.25 A
• Cable length of 1.2 m
• Output current range of 3.125 A
• Line regulation range of +1%
• Load regulation range of +5%
• Ripple and noise of +2%
• Efficiency of 87%
• Holdup time of 8.3 ms
• Desktop mounting type
• Single output
• MTBF of 30000 h
• Operating temperature range of 0°C to +40°C
• Dimensions of 116 (L) x 50 (W) x 30 mm (D)
• Weight of 290 g
