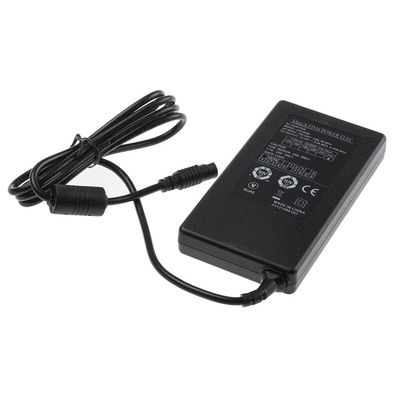

RS PRO 90W Plug-In AC/DC Adapter 24V dc Output, 3.75A Output, Блок питания

RS PRO 24 V DC Power Supply, 90 W, 3.75 A, C8 Connector

Use this 90 W RS PRO power supply to provide 24 V of DC current to compatible equipment from the mains AC. It comes with four interchangeable plugs and works with an input range of 100 to 240 V AC, making it suitable for use with a variety of devices.
The unit has a 1.2-metre cable and weighs only 450 g, so it's compact and portable. It also provides protection against overload, overvoltage and short-circuits, ensuring reliability.
This power supply meets the EU's ErP (Energy-related Products) energy efficiency requirements. It's an effective solution for powering laptops, TVs and gaming consoles.

Features and Benefits

• C8 plug type
• IEC320-C8 input connector
• One output

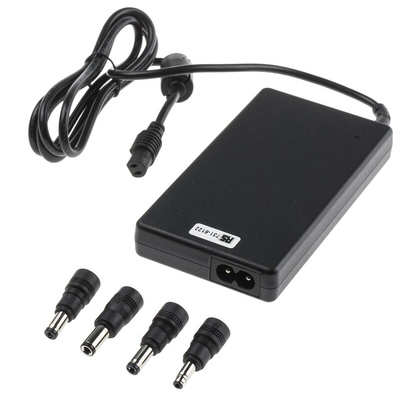

• Four centre positive female coaxial plugs (1.75 x 4.75 x 11 mm, 2.1 x 5.5 x 10.5 mm, 2.5 x 5.5 x 12.5 mm, 3 x 6.3 x 12 mm)
• Output current range of 3.75 A
• Input frequency range of 47 to 63 Hz
• Maximum input current of 500 mA
• Line regulation range of ±1%
• Load regulation range of ±5%
• Ripple and noise of 300 mV
• Efficiency of 87%
• Operating temperature range of 0°C to +40°C
• Dimensions of 118 (L) x 64 (W) x 16.8 mm (D)
• Mean time between failure (MTBF) of 50000 h
