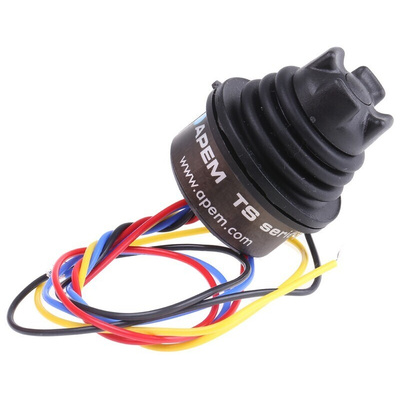

TS-1D1U02A, APEM 1-Axis Joystick Switch Castle, Hall Effect, IP68, IP69K 5V, Джойстик-переключатель

TS Series - Hall Effect Miniature Proportional Joystick

The TS Series Thumb Stick is a proportional two axes joystick in a miniature package. Featuring non-contacting Hall Effect technology for long life performance, the TS Series Thumb Stick is available with multiple linear output options including single and dual (redundant) outputs. Similar in size and operation to "gamepad" controls but in a rugged industrial package.

Features & Benefits

Non-contact Hall Effect technology
Castle shaped thumb stick
Submersible to 1 m (3.28 ft) per IP68
Pressure washable to IP69K
Connection via 25 cm of PTFE 22 AWG wire
Drop-in mounting (complete with mounting accessories
bezel, O-Ring and 4 push in lugs)

Product Application Information

Typical applications for the TS Series Thumb Stick include pendant and remote controls as well as joystick handle and arm rest integration

This unit comes supplied with the Castle handle and has a single axis limiter. It is supplied pre-wired with 22 AWG PTFE cable, 25 cm in length. For easy installation, it is drop-in mount and is supplied with 4 push in connectors, a drop-in bezel and an O-Ring for front panel sealing.

Outputs

This joystick offers dual outputs in the form of a single 0V to 5 V (rail to rail) and a single 0.5 V to 4.5 V output.

TS Series Hall effect miniature proportional joystick
