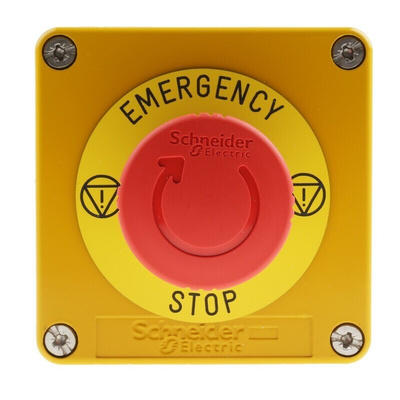

XAPK178F93H29, Schneider Electric Harmony XAP Series Twist Release Emergency Stop Push Button, Surface Mount, 2NC, IP65

Schneider Electric Harmony XAP Series Emergency Stop Push Button

An excellent addition to your working environment, the Harmony XAP range of emergency stop ("E-Stop") push button from premium brand Schneider Electric gives you the reassurance that all your safety needs will be met.

Made for those situations where an effective halt to all operations is needed, this button gives you and your users quick cut off action to machinery and other equipment that could pose a risk to the health of yourself or other users. Quality is assured with this premium range, the safety of all key users is important, therefore these emergency stop push buttons are made to be durable and reliable in those emergency-like situations.

Features and Benefits

• Easy to use "turn to reset" functionality for easy reset once activated
• Blue base cover with a prominent yellow hardcover / red push button with self-explanatory markings detailing out to nearby users its function
• Durable Zinc Alloy material, easy to clean and maintain with added durability for extended use (mechanical durability of 300,000 cycles)
• Short-circuit protection using a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1
• Conforming to several industry standards including, EN/IEC 60204-1, 60947-1, 60947-5-1 and more
• Rated NEMA 13, providing additional protection against environmental disturbances such as dust, oil or spraying of water (primarily fit for indoor use)
• IP 65 rated conforming to IEC 60536, further protecting your device from dust ("dust tight rated") and protected against heavy seas or powerful jet washers or splashes of water

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement)
• Service sectors such as restaurants, kitchens, car washes and more

Schneider Electric Emergency Stop Push Button - XAPK178F93H29

• Created and designed to turn off machinery in the event of an emergency, featuring an emergency switching off function
• Forms part of the Harmony XAP range of products
• Red mushroom operator profile

XAPK178F93H29 Metal Emergency Stop Station Data Sheet

Machine Guarding and Safety Range Overview

XAPK178F93H29 Datasheet

Green Premium ecolable

Product Environmental Profile
