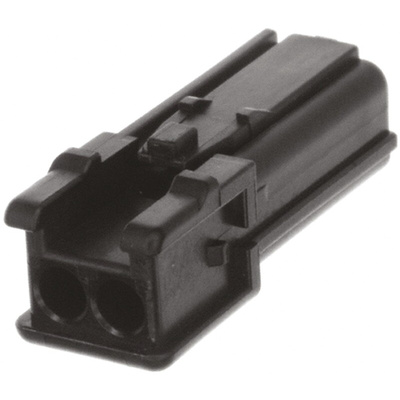

MX44002SF1, JAE, MX44 Female Connector Housing, 3.5mm Pitch, 2 Way, 1 Row, Корпус разъема

JAE MX44 Series Socket Housings

These JAE MX44 Socket housings allow individual sealing of each contact wire which is complementary to the mating header pin sealing.

Note

For MX44 Contacts see stock number 731-9086 typical.
For MX44 Wire Seals see stock number 731-9045 typical.
For MX44 Retainers see stock number 731-9055 typical.
For mating MX44 Headers see stock number 731-9058 typical.

JAE MX44 Series Automotive Connectors

The JAE MX44 series of connectors are compact and waterproof making them suitable for automotive applications.,The compact design of the MX44 has been achieved by using a structure that reduces the volume of the rubber seals by compression. The MX44 rubber seals improve vibration absorption thus giving improved vibration resistance between the contacts and housing. Each contact in the MX44 connector is individually waterproof, thus making them suitable for use in harsh environments as found in engine areas.

The MX44 connector series has a 3.5 mm side pitch in a single row configuration.

MX44 2w socket housing Drawing
