RN-2412S, Recom RN DC-DC Converter, 12V dc/ 100mA Output, 21.6 → 26.4 V dc Input, 1.25W, Through Hole, +85°C Max Temp, Преобразователь

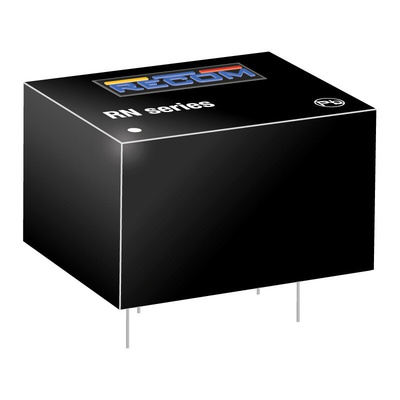

Recom 1.25W DIP Single Output Unregulated Isolated DC-DC Converter - RN Series

Single output 1.25 W DIP8 unregulated DC to DC converters with an efficiency rating of up to 85%. These 1.25 W DIP8 unregulated DC to DC converters are ideal for use where space is restricted making 2W converters unsuitable.

Compact DIP8 design
No external components required
UL94V-0 package material
Up to 85% efficiency
Short circuit protection
No heatsink required

Note

MTBF to MIL-HDBK 217F (25°C)
Derate output when operating temperature is above 85°C

Standards

EN-60950-1

RECOM DC-DC Converter, 24V Nominal Input Voltage, Isolated - RN Series - RN-2412S

Want to be sure your equipment's getting the right power? Connect it up with this DC-DC converter from RECOM. It's a smooth operator that takes input voltages between 21.6 and 26.4V DC and delivers a glitch-free 12V DC output. Thanks to the handy through-hole mounting method, it's a cinch to install on a PCB. An efficiency rating of 79% to 82% means you won't need to worry about wasteful energy loss or risky heat build-up.

• Isolation voltage of 1kV DC protects against electric shock or damage due to short circuits
• Power rating of 1.25W to handle light-duty jobs
• Broad operating temperature range between -40°C and +85°C means it's suitable for use in harsh conditions
• Standard DIP-8 package for quick and easy installation

Applications

• Lighting systems
• Smart appliances
• Industrial equipment

How big is this DC-DC converter?

It has compact dimensions of 12.5 (L) x 7.62mm (D), so it fits neatly into setups where there's not much room to spare.

How much does this converter weigh?

As it weights in at just 1.9g, it doesn't put unnecessary pressure on your PCB.
