R05P05S/R8, Recom RxxPxx/R DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp, Преобразователь

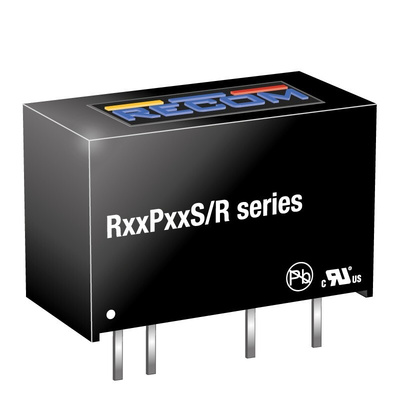

Recom 1W SIP Single/Dual Output Medical Approved Unregulated Isolated DC-DC Converter - RxxPxx

These 1W unregulated SIP 7 DC to DC converters are available with single or dual outputs and are certified to UL/CSA-60950 and UL/CSA- 60601 making them ideal for medical and safety applications. These DC to DC converters also have reinforced isolation and are EN61010-1 certified for lab equipment safety.

Compact SIP7 package
EN60601-1 certified for medical applications
EN61010-1 certified for measurement, control and laboratory use
Reinforced isolation of 8kVdc
Unique transformer system (patent pending)
Short circuit protection

Note

MTBF to MIL-HDBK 217F (25°C)
Derate output when operating temperature is above 85°C

Standards

EN-60950-1, UL 60950-1, CSA 60950-1, EN-60601-1, UL 60601-1, CSA 60601-1, EN-61010-1

Approvals

UL, CSA

RECOM DC-DC Converter, 1 Output, 8kV DC Isolation Voltage - RxxPxx/R Series - R05P05S/R8

Use this DC-DC converter from RECOM to keep your devices ticking over reliably. It changes a variable input voltage between 4.5 to 5.5V DC to a safe output level of 5V DC. Thanks to a 1W power rating, this device is a low-energy option to support light-duty bits of kit. The through-hole mounting type makes installation a cinch, with no drilling needed. This converter has a high mean time between failures of over 300,000 hours, so you can count on it to stay the course.

Features & Benefits

• Up to 80% efficiency means it's a low-waste option and more environmentally friendly
• Compact dimensions of 19.5 (L) x 9.8 (W) x 12.5mm (H) means it slips into spots where space is tight
• 0.15 load regulation means consistent delivery of power for reliable performance
• Housing stops burning in less than 10 seconds in the event of fire

Applications

• Mechanical workshops
• Medical equipment
• Consumer electronics

Can I use this component in harsh industrial conditions?

Yes. This converter operates in a wide temperature range between -40°C and +85°C, so it's a suitable choice for harsh industrial conditions.
