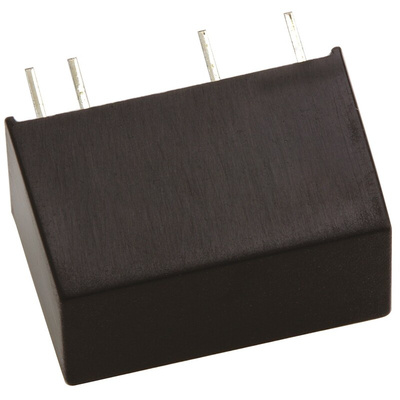

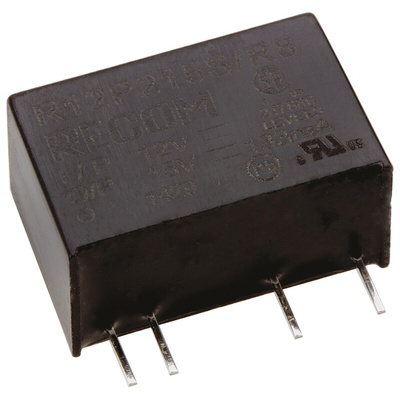

R12P215S/R8, Recom DC-DC Converter, 15V dc/ 132mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 8kV DC Reinforced Isolation Voltage, 2W Power Rating - R12P Series - R12P215S/R8

Count on this DC-DC converter from RECOM to safely power your laboratory equipment. Thanks to its high isolation voltage of 8kV DC, you can rely on it to protect people against shocks and minimise the chance of electrical interference causing glitches in equipment. The unit's compatible with input voltages from 10.8 to 13.2V DC and provides a reliable and stable 15V DC output. Its compact SIP7 format makes it easy to mount while taking up minimal board space. As this converter has flame-retardant silicone rubber potting, there's little chance of it contributing towards the spread of a fire.

Features & Benefits

• Continuous short-circuit protection reduces the risk of equipment damage due to power faults
• Tips the scales at 4.3g, putting minimal strain on a circuit board
• Typical efficiency between 80 and 88% ensures low power loss

Applications

• Hospitals and medical centres
• Laboratories and testing facilities
• Measurement and process control

Does this DC-DC converter need fan cooling?

No, free air convection keeps the component sufficiently cool when it's operating in temperatures from -40°C to +85°C.

Datasheet
