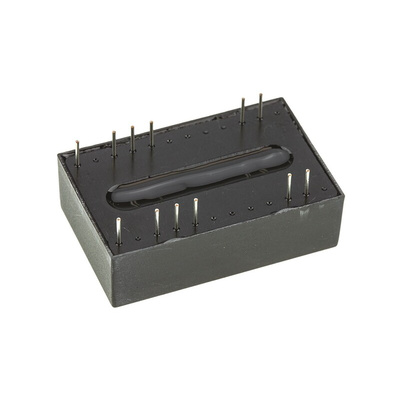

R12-100B, Recom R12 DC-DC Converter, 55 → 135V dc/ 50mA Output, 10 → 14 V dc Input, 5W, Through Hole, +70°C Max, Преобразователь

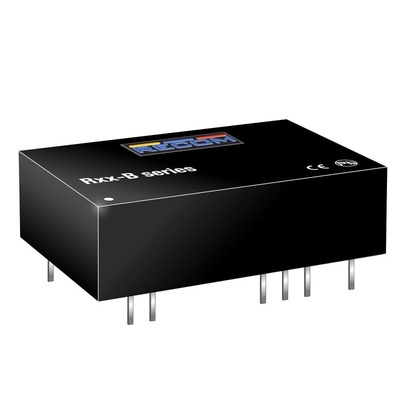

Recom 1 to 5W DIP Single Output Regulated Isolated DC-DC Converter - Rxx-B Series

5W single output regulated DIP 24 DC to DC converters with an adjustable output voltage range of up to 210 Vdc. These regulated DIP 24 DC to DC converters can be cascaded for output voltages of up to 420Vdc.

Regulated output
Adjustable output voltage of up to 210 Vdc
Cascadeable for output voltages up to 420 Vdc
Remote voltage programming by external voltage or resistance
3kVdc input/output isolation
Continuous short circuit protectio and automatic restart

Note

MTBF to MIL-HDBK 217F (25°C)
Derate output when when operating temperature is above 70°C

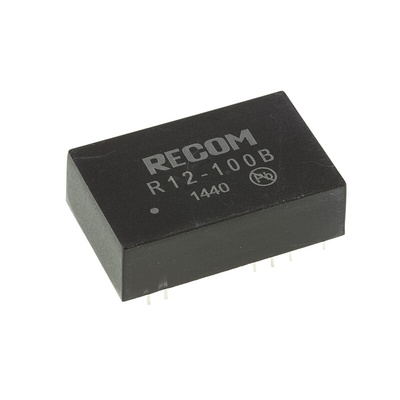

RECOM DC-DC Converter, 5W Power Rating, 3kV DC Isolation Voltage - R12 Series - R12-100B

Choose this DIP 24 DC-DC converter from RECOM to protect your equipment and improve workplace safety. It converts input voltages between 10 and 14V to the outgoing feeds your devices can handle. As it outputs between 55 to 135V, this is a widely compatible option. An efficiency rate of 82% ensures consistent performance and reduced downtime. You can be sure of a reliable power supply thanks to its 3kV direct current isolation, which separates incoming from target circuits.

Features & Benefits

• Tough moulded plastic housing safeguards internal components and prevents electric shocks
• Compact dimensions of 31.8 (L) x 9.4mm (D) help with installation on densely-packed PCBs
• Through-hole mounting for convenient and quick assembly
• Broad operating temperature range between -40°C and +70°C for use in harsh conditions

Applications

• Robotics systems
• Automated factory processes
• Medical equipment
• Test and measurement applications

Does this DC-DC converter offer any additional electrical protection?

Yes, it has continuous short-circuit protection. This means the unit will instantly disconnect the power supply when current overloads occur, which protects equipment and helps prevent fire outbreaks.

What's the load regulation of this DC-DC converter?

This converter has a load regulation of approximately 0.5% for efficiency and reliability.
