R05-100B, Recom Rxx-B DC-DC Converter, 40 → 120V dc/ 25mA Output, 4.5 → 6 V dc Input, 3W, Through Hole, +70°C Max, Преобразователь

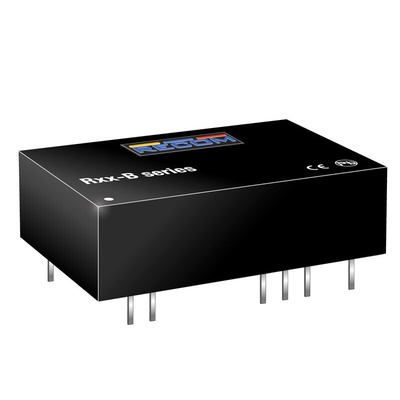

Recom 1 to 5W DIP Single Output Regulated Isolated DC-DC Converter - Rxx-B Series

5W single output regulated DIP 24 DC to DC converters with an adjustable output voltage range of up to 210 Vdc. These regulated DIP 24 DC to DC converters can be cascaded for output voltages of up to 420Vdc.

Regulated output
Adjustable output voltage of up to 210 Vdc
Cascadeable for output voltages up to 420 Vdc
Remote voltage programming by external voltage or resistance
3kVdc input/output isolation
Continuous short circuit protectio and automatic restart

Note

MTBF to MIL-HDBK 217F (25°C)
Derate output when when operating temperature is above 70°C

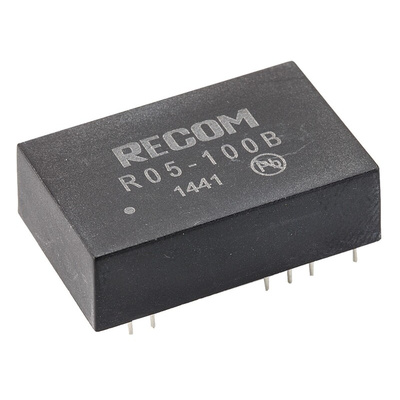

RECOM DC-DC Converter, Fully Encapsulated, 1,400,000h MTBF - RXX-B Series - R05-100B

Choose this DC-DC converter from RECOM to convert a DC voltage input supply into a DC output voltage that's safe for your connected equipment. For versatility, it has a broad input voltage range between 4.5 and 6V DC and an output range between 40 and 120V DC. The non-conductive plastic housing delivers insulation protection to reduce the risk of electric shocks. Built-in short circuit protection also helps prevent system downtime caused by faulty electrical currents.

Features & Benefits

• Efficiency rating of 77% to minimise energy wasted as heat
• Fully encapsulated to keep out dirt particles, so safe to use in contaminated settings
• Isolation between input and output voltage for user safety
• Wide operating temperature range between -40°C and +70°C to withstand demanding settings

Applications

• Communications equipment
• Information technology sites
• Lighting fixtures
• Automated industrial systems

How do I mount this DC-DC converter?

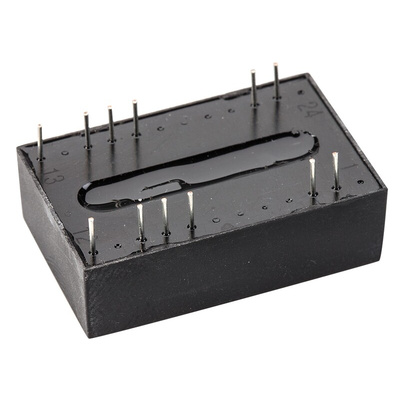

As a through-hole mounting component, this converter has pre-drilled holes in its body that let you mount it quickly and easily without the need for drilling.

How long will this converter last?

Thanks to its high MTBF rating of 1,400,000 hours, you can rest assured this unit will last for a long time.
