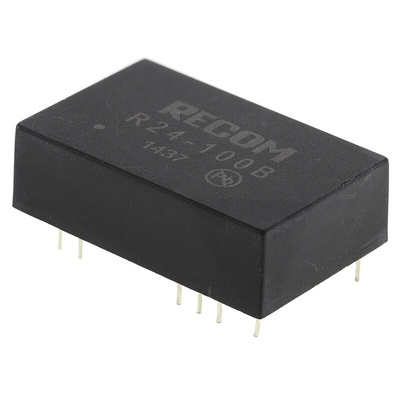

R24-100B, Recom DC-DC Converter, 55 → 135V dc/ 50mA Output, 21 → 27 V dc Input, 5W, Through Hole, +70°C Max Temp, Преобразователь

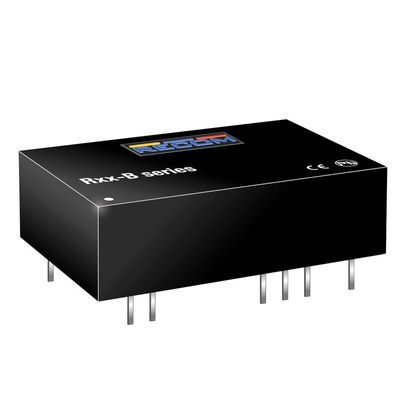

RECOM DC-DC Converter, 3kV DC Isolation Voltage, DIP-24 Package - R24 Series - R24-100B

Get the right balance of power with this DC-DC converter from RECOM. It takes an input of 24V DC and boosts it to a higher voltage. As the output is adjustable between 55 and 135V DC, you can tweak it to work with your application. Isolation between the input and output protects the converter and your connected circuits. This is backed up by continuous short-circuit protection with an automatic restart to help prevent electrical damage. The output is regulated to ensure a stable voltage for dependable operation.

• Wide operating temperature range between -40°C and +70°C at full load to handle harsh conditions
• Universal DIP-24 package size with through-hole pins for simplified mounting
• Remote programming gives you convenient voltage control
• Up to 84% efficiency at full load means it doesn't waste energy as heat

Applications

• Audio-visual equipment
• Military and defence equipment
• Industrial automation
• Computing technology

Can I achieve a higher output voltage with this DC-DC converter?

Yes, it's possible to get a higher voltage output by cascading multiple converters of this type.
