R24-150B, Recom Rxx-B DC-DC Converter, 95 → 210V dc/ 50mA Output, 21 → 27 V dc Input, 5W, Through Hole, +70°C Max, Преобразователь

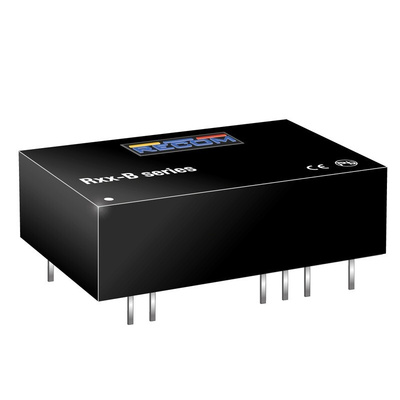

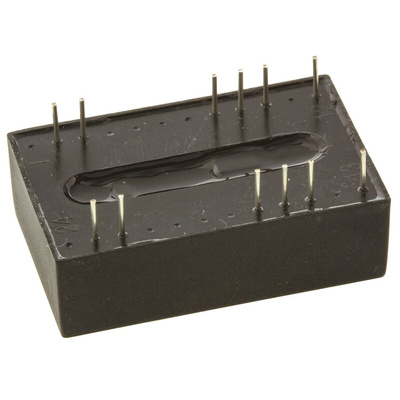

RECOM DC-DC Converter, DIP-24 Package, Adjustable Output Voltage - Rxx-B Series - R24-150B

Safely step up voltage to get your medium-power system running with this DC-DC converter from RECOM. It takes a nominal input of 24V DC and gives you an adjustable output voltage of up to 210V DC. Need more of a power boost? You can cascade two units together for an output of up to 420V DC. Continuous short-circuit protection means power faults are stopped in their tracks, minimising the chance of downstream damage. The converter also auto-recovers after a short circuit, so there's no need for manual intervention.

Features & Benefits

• Safe non-conductive plastic housing protects against electric shocks
• 3kV DC input/output isolation provides protection from voltage surges
• Through-hole mounting for easy installation

Applications

• Industrial power supplies
• Food and beverage production

Why's it important to know the efficiency of your DC-DC converter?

The efficiency of a DC-DC converter tells you how much energy it loses to heat. This device has 84% efficiency at full load. This tells you that minimal energy is going to waste and eliminates the need to install a heatsink.

What's the operating temperature range of this unit?

This component has a broad operating temperature range between -40°C and +70°C, so you can be sure it's safe to use in harsh industrial environments.
