THL 3-4811WISM, TRACOPOWER THL 3WISM DC-DC Converter, 5V dc/ 600mA Output, 18 → 75 V dc Input, 3W, Surface Mount, +85°C Max Temp, Преобразователь

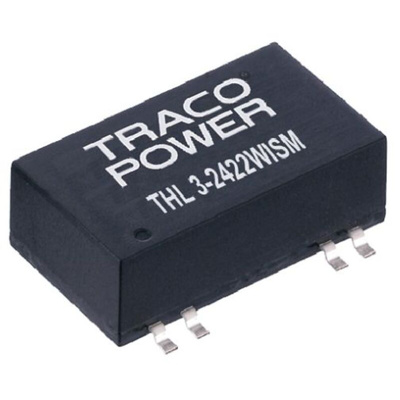

Traco 3W SMD Single/Dual Output Regulated Isolated DC-DC Converter - THL 3WISM Series

THL 3WISM series SMD 3W DC/DC converters with fully regulated outputs. These SMD 3W DC/ DC converters have an ultra wide 4:1 input voltage range and an internal filter that meets EN55022 Class A without external components. These DC/DC converters are ideal for use in data and telecom applications as well as in instrumentation and industrial electronics.

Compact SMD package
4:1 input voltage range
Fully regulated outputs
1500 Vdc I/O isolation
Short circuit protection
Remote On/Off control
Qualified for leadfree reflow solder process, MSL 2a
EMC protection EN55022 level A, FCC part 15, level A without external components

Note

MTBF to MIL-HDBK-217F (25°C).
Load derating: 2.2% / K above +60°C

Standards

IEC 60950-1, UL 60950-1
