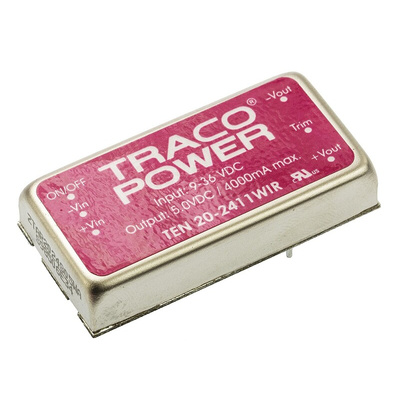

TEN 20-2411WIR, TRACOPOWER TEN 20WIR DC-DC Converter, 5V dc/ 4A Output, 9 → 36 V dc Input, 20W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 88% Efficiency, ±0.5% Load Regulation - TEN 20WIR Series - TEN 20-2411WIR

Want to keep your power supply on an even keel? Trust the job to this DC-DC converter from Traco Power. When you feed it an input between 9 and 36V DC, it gives you a smooth and steady 5V DC output in return. This ensures your sensitive PCB-linked components can run without a hiccup. The unit also serves as an isolating barrier between the input and output source to stop electrical hazards in their tracks. With a power rating of 20W, it meets EN 50155 approval to match the energy of high-powered machinery in railway systems.

Features & Benefits

• Integrated resistance to shock and vibration, so withstands heavy-duty settings
• Typical output ripple and noise of 75mVp-p for clear signal delivery
• Start-up time of 30ms to get things going quickly

Applications

• Robotics systems
• HVAC equipment
• Transport industry
• Domestic appliances

How efficient is this DC-DC converter?

An efficiency rating of up to 88% indicates the device releases minimal energy waste as heat so you won't need to add a heatsink to your board.

How accurate is this converter?

It has a voltage accuracy rating of ±1%, meaning there's a low risk of error during the conversion process.
