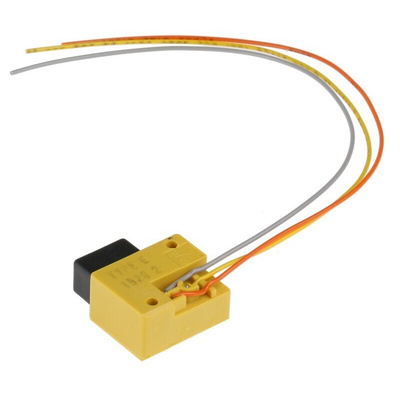

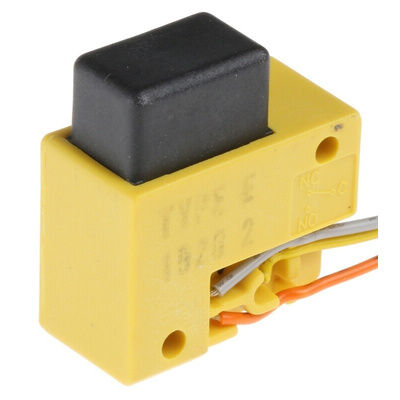

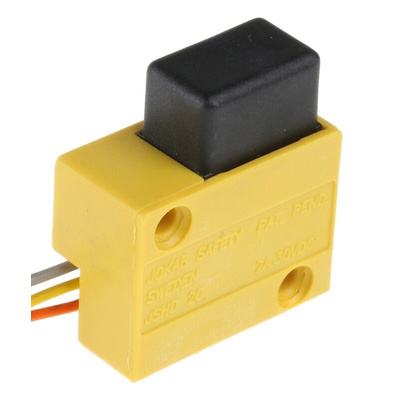

2TLA020001R1000 JSHD2C type E, ABB JSHD Series Safety Enabling Switch, 3 Position, IP65, Выключатель

Enabling Switch, JSHD Series

The JSHD series from ABB Jokab offers the ability to operate machinery safely via a three position control device. Many different versions are available for a wide variety of applicational uses. Key features which have been incorporated within this series from ABB Jokab include a front button (for programme start, low speed, etc), a top button (for programme stop, grip devices, etc),a bottom plate (wide bottom plate for fixing interlocking devices and Eden (non-contact sensor) or narrow bottom plate for more flexible handling), a cable version (straight or spiral cable with connectors or assembled on the device), LED indication and finally the device is designed to work with a safety relay or PLC.

Multiple uses in troubleshooting, test running and programming where no other protection is available or feasible
Key adavntages of the JSHD4 enabling device include it being ergonomic, adaptable and the device provides LED status information
Mechanical life of 1000000 cycles to the middle position
The body material consists of Polyamide 6.6
Operating force of approximately 15 N
High protection class rating of IP65
Insulation resistance of a minimum of 20 MΩ

Approvals

CE, CSA

ABB Safety Enabling Switch

The ABB JSHD series is a safety enabling switch that facilitates safe operation of machinery via a 3-position control device. This product is available in different versions for a wide variety of application uses. It has a supply voltage rating of 30V and a current rating of 500mA. This series is enabled with key features from ABB Jokab such as a front button (for programme start, low speed, and more), a top button (for programme stop, grip devices, and more), a bottom plate (wide bottom plate for fixing interlocking devices), Eden (non-contact sensor or narrow bottom plate for more flexible handling), a cable version (straight or spiral cable with connectors or assembled on the device), and LED indication. Additionally, this device is designed to work with a safety relay or PLC.

Features and Benefits

Multiple uses in troubleshooting, test running, and programming where no other protection is available or feasible
Key advantages of the JSHD4 enabling device include it being ergonomic, as well as adaptable and the device provides LED status information
Mechanical life of 10,00,000 cycles to the middle position
The body material consists of polyamide 6.6
Operating force of approximately 15N
High protection class rating of IP65
Insulation resistance of a minimum of 20MΩ

Certifications

CE certified
CSA certified
IP65 rated

Enabling Switch

Three Position Button JSHD2C
