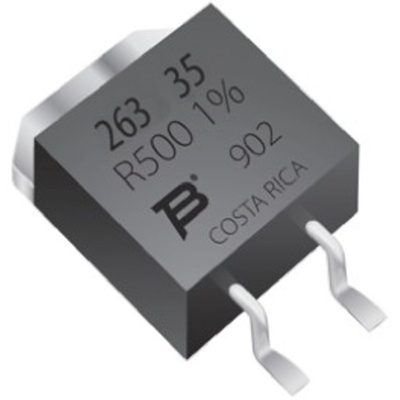

Bourns 750mΩ Thick Film SMD Resistor ±5% 35W - PWR263S-35-R750J, Резистор

35W 5% PWR263 Series ( TO263 package )

PWR263S-35 SMD power resistors from Bourns are rated to 35 W continuous power in a D²PAK package. Please note, 35 W is the maximum power rating with a back plate temperature of 25°C. See the de-rating curve for other back plate temperatures. Manufactured using thick film on alumina ceramic technology the PWR263S-35 SMD power resistor series is designed to withstand peak temperatures of 260°C during solder reflow.

The PWR263S-35 SMD power resistor series offers a wide resistance range. This series features pulse power handling and low inductance. These resistors are suited to current limiting, current sensing, capacitor discharge in battery charging, AC-DC, DC-DC and DC-AC conversion circuits.

D²PAK housing
Low inductance
Resistor electrically isolated from the back plate
High power rating
Compatible with lead free solder reflow temperatures

Product Application Information

These power resistors are AEC-Q200 qualified and suitable for automotive applications. PWR263S-35 SMD power resistors can be used in uninterruptible power supplies, telecom power supplies, welding machines and automation. Other applications include aerorspace, automotive and railway equipment.

Applications:-

Power supplies
Motor drives
Test and measurement
Rectifiers

Standards

AEC-Q200 qualified

Non-Inductive - Surface Mount Package
