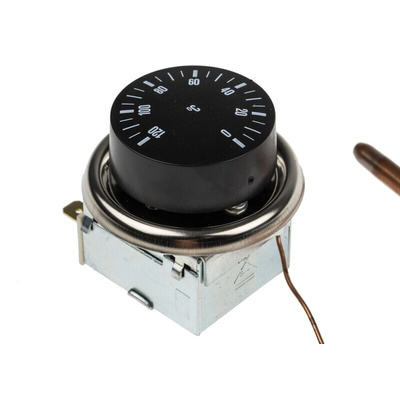

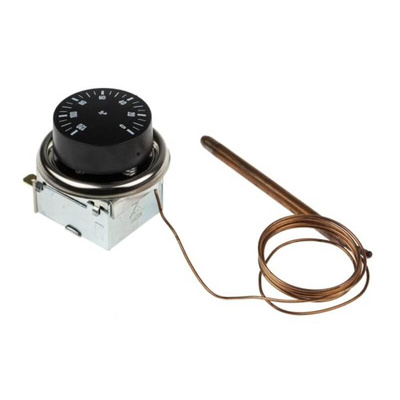

RS PRO Capillary Thermostat, +120°C Max, SPDT, Automatic Reset, Panel Mount, Термостат

RS PRO SPDT 15 A Capillary Thermostat

Use this versatile, easy-to-use, multi-function capillary thermostat to regulate temperatures in a range of different situations. Its reliable temperature control system is handy in both household and commercial applications and settings.

When the capillary breaks, an automatic reset is activated to safely cut off the circuit without the need for manual intervention. As this thermostat is able to handle a temperature range of 0°C to +120°C, it's particularly suited to control the temperature in systems such as hot water cylinders but it is equally useful a range of different system types.

The changeover contacts in this capillary thermostat mean it can be used with both heating and cooling loads. The chrome mounting bezel and knob make for simple and adjustable mounting.

You'll find capillary thermostats such as this controlling temperatures in industrial refrigerators, for example.

Features and Benefits

• Capillary thermostat
• Operating temperature range of 0°C to +120°C
• SPDT switch configuration
• Contact rating of 15 A
• Contact voltage rating of 250 V AC
• Panel mount
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
