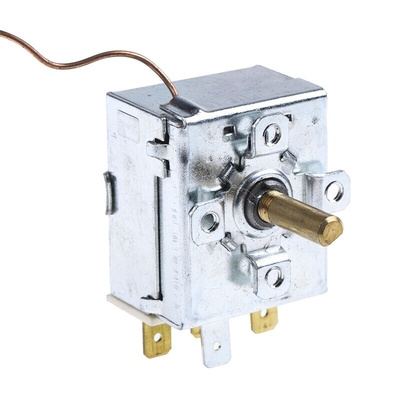

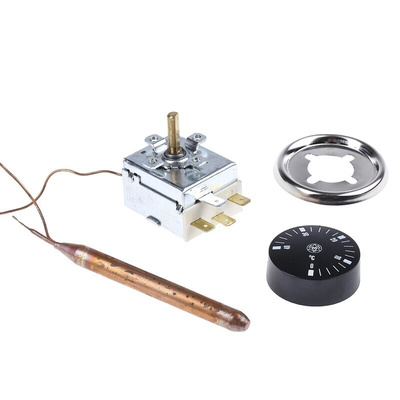

RS PRO Capillary Thermostat, +40°C Max, SPDT, Automatic Reset, Panel Mount, Термостат

RS PRO SPDT 16 A Capillary Thermostat, Manual Reset

Easily regulate temperatures in household and commercial appliances with this capillary thermostat. It's a versatile, multi-function thermostat from RS PRO that provides reliable temperature control across a range of different situations.

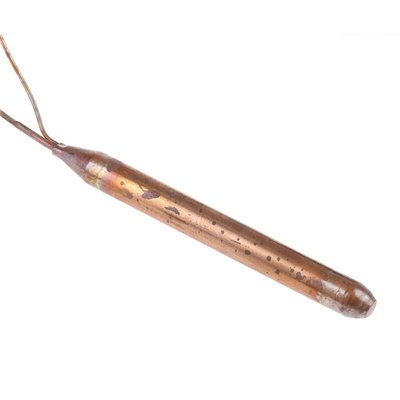

A 1 mm capillary separates the main bulb of the thermostat from the contact head and moves the fluid as the pressure changes. When a pre-set temperature is reached, the capillary will break and safely cut off the circuit. The thermostat will need to be manually reset.

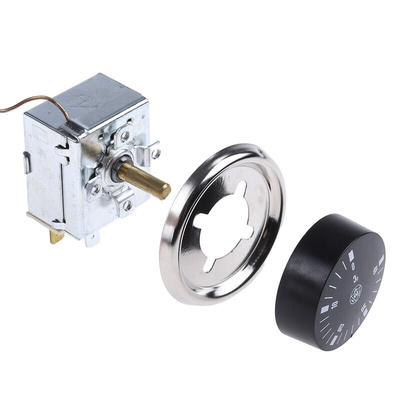

A chrome mounting bezel and knob makes mounting simple and easy. Thanks to changeover contacts, this device can be used in the control of both heating and cooling loads.

This capillary thermostat operates at temperatures in the range of 0°C to +40°C and is suitable for controlling temperatures in applications such as hot-water boilers or washing machines.

Features and Benefits

• Capillary thermostat
• Operating temperature range of 0°C to +40°C
• SPDT switch configuration
• Contact rating of 16 A
• Contact voltage rating of 250 V AC
• Manual reset
• Panel mount

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
