RS PRO Capillary Thermostat, +110°C Max, SPST, Manual Reset, Panel Mount, Термостат

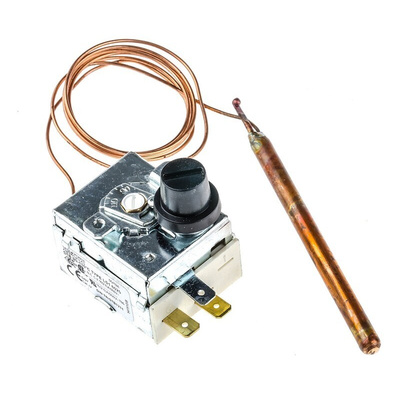

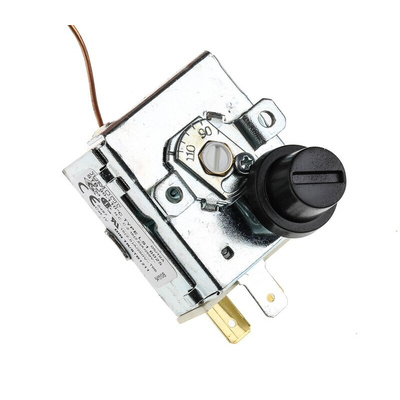

RS PRO SPST Safety Limit Thermostat (90 – 110°C)

A high quality and reliable capillary type temperature limiter featuring a single pole, single throw (SPST) configuration, manual reset and adjustable temperature limit options of 90 to 110°C.
The capillary thermostat features a liquid filled probe and positive cut out in case of capillary breakage. Intended for panel mounting the thermostat features 3 Brass contacts for easy fixing and a voltage rating of 250V.
The manual safety thermostat is suitable for use in a wide range of applications particularly where it is crucial that temperatures do not exceed a pre-set safety level and ideally suited for use with central heating systems and boilers.

Features and Benefits

Safety limit thermostat
Temperature limits of 90 to 110°C.
Capillary type
SPST configuration
Voltage rating of 250 ac
Contact Rating of 15A
Manual reset
Capillary length of 1000mm
Panel mount

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
