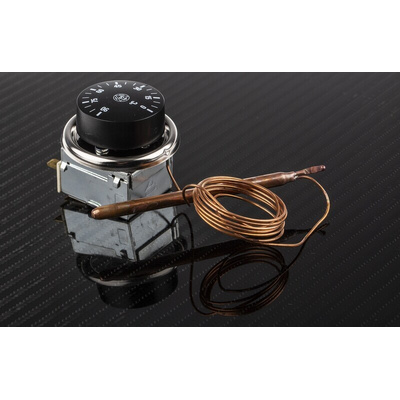

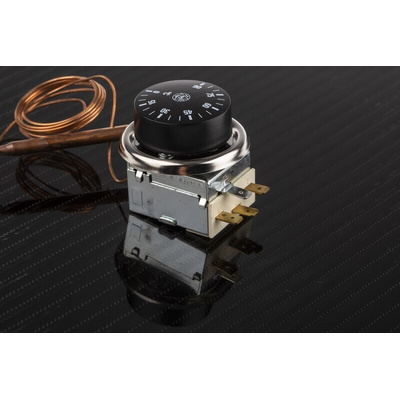

RS PRO Capillary Thermostat, +90°C Max, SPDT, Automatic Reset, Panel Mount, Термостат

RS PRO SPDT 16 A Capillary Thermostat, Automatic Reset

Regulating temperatures is simple with this capillary thermostat. Are you looking for a versatile multi-function thermostat that suits a range of different situations? This device's reliable temperature control system is equally useful for both commercial and household applications.

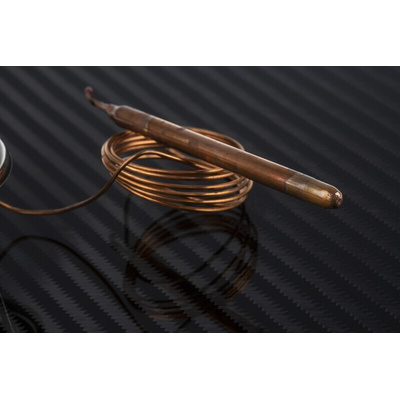

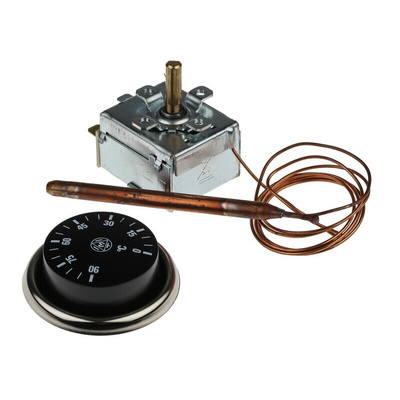

The main bulb of the thermostat is fully separated from the contact head by a 1 mm capillary, which moves the fluid as the pressure changes. An automatic reset is activated when the capillary breaks, safely cutting off the circuit with no need for manual intervention. The thermostat can handle a temperature range from 0°C to 90°C in a range of different system types. Changeover contacts mean it can be used with both heating and cooling loads. It comes complete with a chrome mounting bezel and knob for straightforward and adjustable mounting.

This kind of capillary thermostat is used to control temperatures in systems such as industrial refrigerators.

Features and Benefits

• Capillary thermostat
• Minimum operating temperature of 0°C
• Maximum operating temperature of 90°C

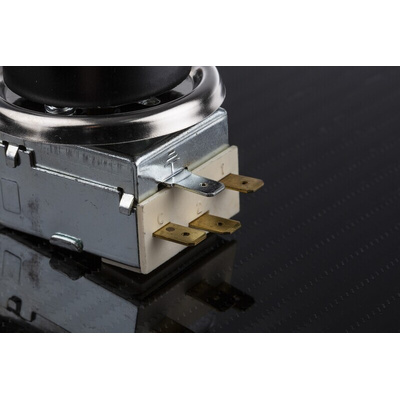

• SPDT switch configuration
• Contact rating of 16 A
• Contact voltage rating of 250 V AC
• Automatic reset
• Panel mount
