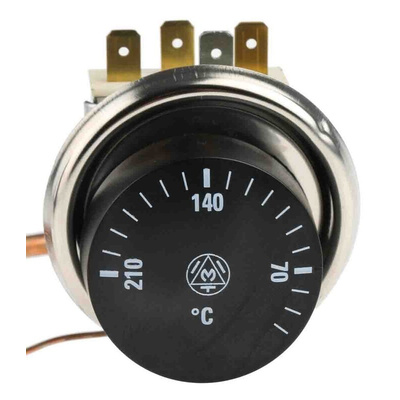

RS PRO Capillary Thermostat, +210°C Max, SPDT, Automatic Reset, Panel Mount, Термостат

RS PRO SPDT 16 A Capillary Thermostat, Automatic Reset

This versatile, multi-function capillary thermostat can regulate higher temperatures in an easy-to-use manner. The reliable temperature control system from RS PRO is just as useful in a commercial application as it is a household appliance.

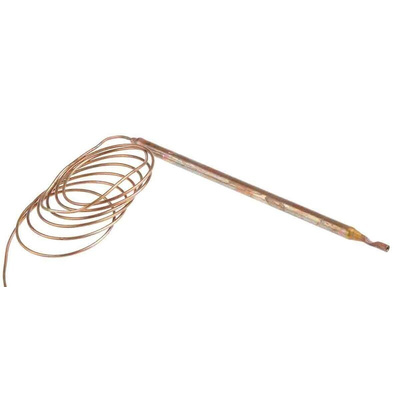

With the ability to control temperatures in the wide range of +40°C to +210°C, it's suitable for use in hot-water boilers, domestic or commercial ovens and washing machines. The main bulb of the thermostat is fully separated from the contact head by a 1mm capillary. The automatic reset is activated when the capillary breaks, safely cutting off the circuit with no need for manual intervention.

This thermostat can be used with both heating and cooling loads as it has SPDT changeover contacts. A chrome mounting bezel and knobs make for straightforward mounting and easy adjustability.

You'll find units such as this in demanding applications such as industrial refirgeration.

Features and Benefits

• Capillary thermostat
• Operating temperature range of +64°C to +210°C
• SPDT switch configuration
• Contact rating of 16 A
• Contact voltage rating of 250 V AC
• Automatic reset
• Panel mount

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
