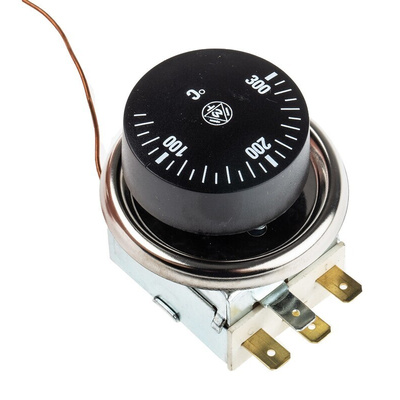

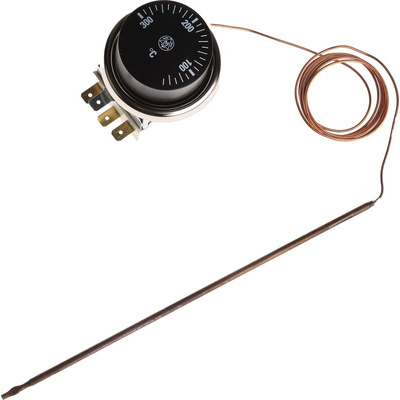

RS PRO Adjustable Capillary Thermostat, Opens at +310°C, Closes at +50°C, +330°C Max, SPDT, Automatic Reset, Panel Mount, Термостат

RS PRO SPDT 16 A Adjustable Capillary Thermostat

Regulate extremely high temperatures with this simple-to-use and versatile capillary thermostat. The reliable temperature control system from RS PRO is suited for both industrial and household applications.

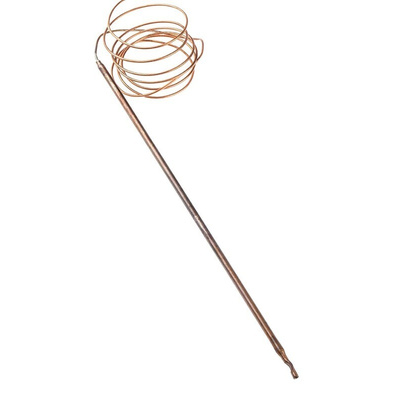

This thermostat is capable of handling temperatures as high as +300°C and can be used in a range of different system types, but is commonly found in water heaters, ovens and boilers. The thermostat's main bulb is fully separated from the contact head by a 1 mm capillary, and as the pressure changes, it moves the fluid. Once a set temperature is reached, the capillary breaks and safely cuts off the circuit.

Mounting is simple with the chrome mounting bezel and knob. The changeover contacts mean it can be used with both heating and cooling loads.

Features and Benefits

• Adjustable capillary thermostat
• Operating temperature range of 0°C to +300°C
• SPDT switch configuration
• Contact rating of 16 A
• Contact voltage rating of 250 V AC
• Panel mount

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
