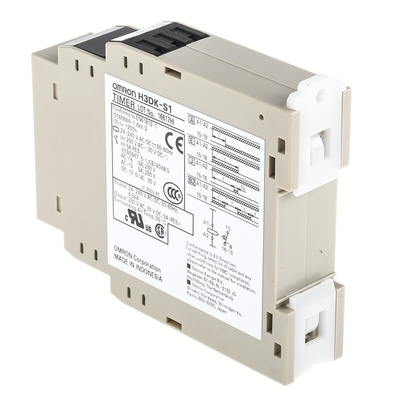

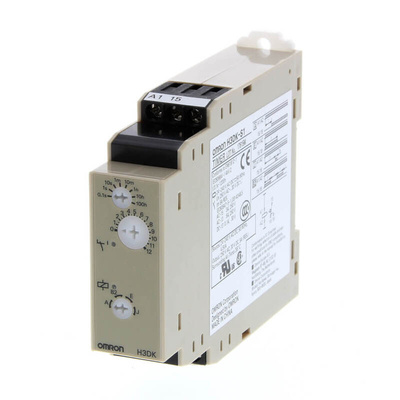

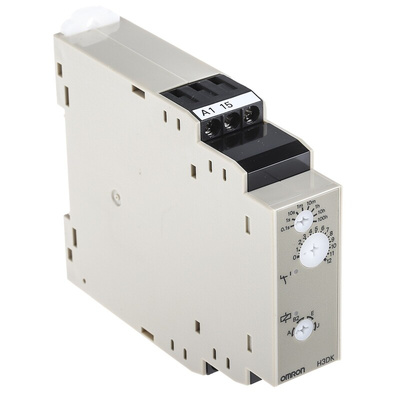

H3DK-S1 AC/DC24-240, Omron H3DK Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.1 s → 1200h, SPDT

OMRON Timer Relay, 89.4 (H) x 22.5 (W) x 100mm (D), ±1%FS Maximum Accuracy - H3DK Series - H3DK-S1 AC/DC24-240

Ensure your control mechanisms stay on schedule with this timer relay from OMRON. It works with a preset interval to activate a delay that causes the contacts to open or close at a precise point. As it's resistant to shock and vibration, you can count on it to remain stable on shaky grounds. With a maximum accuracy of ±1%FS, this relay's a great shout when you need to keep sensitive equipment such as HVAC systems on track in repeat cycles.

Features & Benefits

• Mechanical life cycle of up to 10 million operations for long-term use
• Timing increment range between 0.1s and 1200h for flexible configuration
• Withstands harsh conditions thanks to operating temperature range between -20°C and +55°C
• Mounts onto a DIN rail for tool-free installation

Applications

• Automotive engineering
• Security systems
• Energy industries

What operating modes is this relay capable of?

You can adjust the operation of this relay between flicker on start, interval, on delay and one-shot output modes to suit your application.

How can I tell the status of this relay?

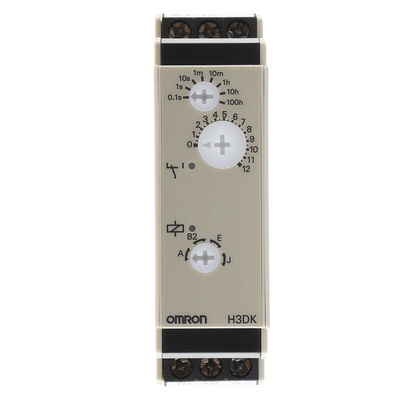

Thanks to the LED indicators that show its power and contact state, you can read the status of this relay in a jiffy.
