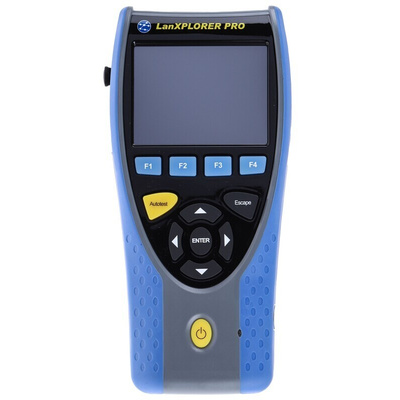

LanXPLORER PRO - Premium Kit, In-Line Network Tester

LanXPLORER PRO is the first hand-held network maintenance and troubleshooting tool capable of testing active LAN connections over both copper and fibre*. Most tests can also be performed through a Wi-Fi connection liberating the user from having to make a physical connection to the network.Packed with features designed to quickly identify and isolate device-to-network connectivity problems in any enterprise, campus or industrial Ethernet environment. The powerful Net Map/Net Verify function compares a previously stored network device list against the current device list making any changes to the network instantly identifiable. The inline Gigabit mode allows users to non-intrusively monitor network traffic including VoIP calls, run PC diagnostics, verify connection speed, protocols, PoE/PoE+ and much more

Features and Benefits:

• Intuitive operation via a full-colour 3in. touch-screen display
• Performs network tests over copper, fibre* or Wi-Fi links
• Support of 10/100/1000 Ethernet

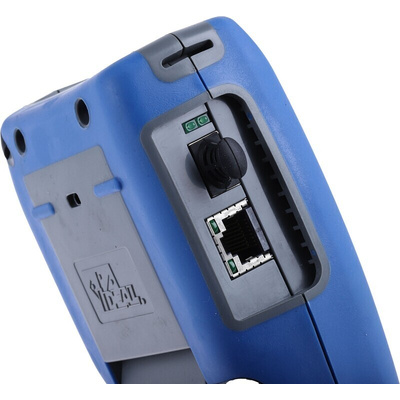

• Inline tests and PC Diagnostics through dual RJ45 copper ports (top talkers, protocols, packet size distribution, etc.)
• Identifies active devices on the network which can be compared with historical data
• DHCP client, variable Ping and Traceroute tests with VLAN support
• Monitoring of VoIP calls and quality, including RTP jitter
• Detection of POE and POE+ with voltage, current, power and load tests
• Best in class wiremapper capable of testing by pin with cable length measurement
• Full bandwidth Layer 1, 2 and 3 Loopback device
• Wire tracing function in combination with an Amplifier Probe
• Field replaceable RJ-45 inserts
• Internal memory with data download to PC
• Made in the EU

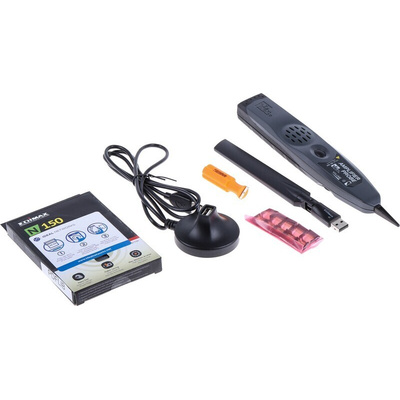

Premium kit also includes:-

Rechargeable NiMH battery pack (replaces 6 ´ AA cells supplied with standard product)

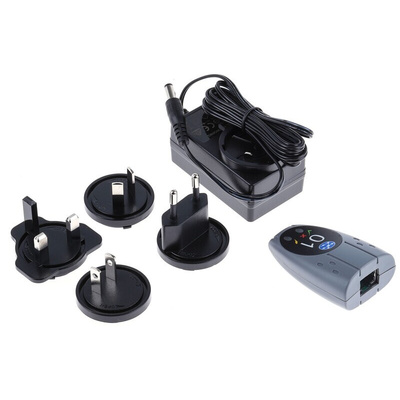

Mains power supply with UK/EU/US adapters

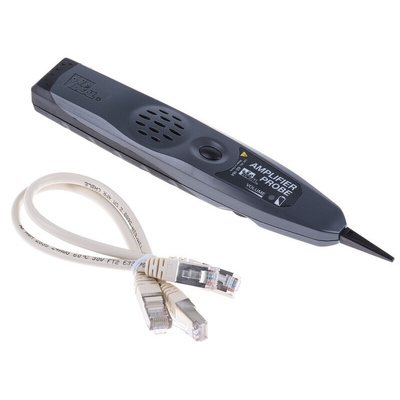

IDEAL amplifier probe (Part # 62-164)
10 replacement RJ-45 inserts and extraction tool

LanXPLORER PRO:

• In-Line LAN Testing over Copper with VoIP Monitor, PC Diagnostics and PoE / PoE+ load test
• Loopback Mode
• LAN Testing over Optical Fibre
• Touchscreen

What is the difference between RJ45 & RJ11?

RJ45 is an 8-pin connector whereas RJ11 is only a 4 wire connector. RJ45 is used in Ethernet connections to connect computers to networks. RJ11 is more of a conventional telephone wire used to bring fibre into your house. RJ is the abbreviation of ’registered jack’.

Note

LanXPLORER PLUS – Standard model plus WiFi,* Optional SFP (Small Form Pluggable) optical transceiver required to test fibre optic links. See RS Stock Nos 733-5577 or 733-5570. Optional active remote sets available See RS 733-5564 or 733-5568
