RS PRO Carbon Steel Female Hydraulic Quick Connect Coupling, BSP 1/2 Female, Муфта

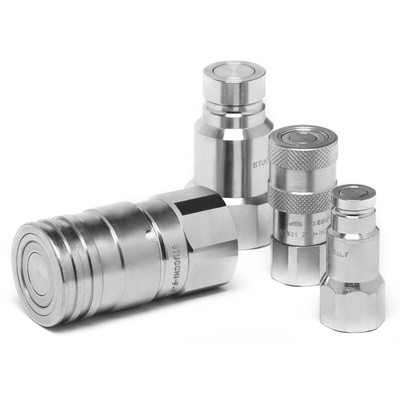

RS PRO Carbon Steel Female Hydraulic Quick Connect Coupling, RP 1/2 Female

This quick-connect coupler from RS PRO is designed to be attached to the end of an existing hose using the built-in 1/2 inch screw thread. A matching plug can then be connected to the coupler, with the quick release allowing for easy changes between tools. The connector will maintain high-static pressure even when no plug is attached – however, we recommend against connecting or disconnecting when the system is pressurised. A dual seal design of nitrile and PTFE (polytetrafluoroethylene) ensures redundancy in the leak protection.
The coupler is intended for use in industrial or automotive environments and is designed to be hardwearing and resilient. The rear side is made in a hex shape to allow it to be easily gripped with a spanner for tightening it onto the hose's screw thread.

Features and Benefits

• Compatible with ISO-DIS (International Organization for Standardization, Draft International Standard) 16028
• Female coupling gender
• Yellow passivated, zinc-plated finish
• Screw lock locking style
• Carbon steel material
• Maximum operating pressure of 350 bar
• Operating temperature range of -25°C to +100°C
• Nitrile rubber seal material
• 1/2 in female thread
• Thread standard is RP
• Union type

RS PRO Datasheet
