RS PRO Carbon Steel Female Hydraulic Quick Connect Coupling, BSP 1/4 Female, Муфта

RS PRO Carbon Steel Female Hydraulic Quick Connect Coupling, Rp 1/4 Female

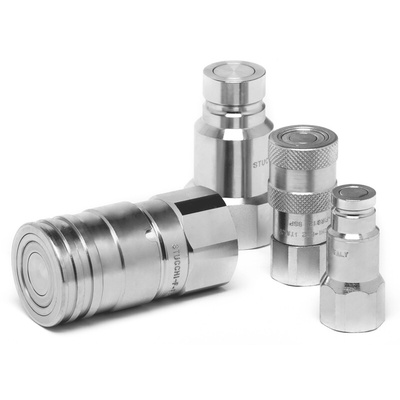

This female hydraulic coupler from RS PRO features quick-connect technology. This allows you to change compatible fittings and tools easily and rapidly. Attach it to the end of an existing hose using the 1/4-inch screw thread.


For added reliability, the connector has a dual seal design of nitrile rubber and PTFE (polytetrafluoroethylene) to provide double protection against leaks. The rear side has a hex shape that's easy to grip with a spanner, making it simple to tighten it onto the hose's screw thread.


This coupler is made from highly durable and hard-wearing carbon steel plated with yellow passivated zinc for increased resistance to corrosion. This makes for a strong and long-lasting product that's suitable for harsh industrial or automotive applications.

Features and Benefits

• Compatible with ISO-DIS (International Organization for Standardization, Draft International Standard) 16028


• Female coupling gender


• Yellow passivated, zinc-plated finish


• Screw lock locking style


• Carbon steel material


• Maximum operating pressure of 400 bar


• Operating temperature range of -25°C to +100°C


• Nitrile rubber seal material


• 1/4 in female thread


• Thread standard is Rp


• Union type

RS PRO Datasheet
