Keysight Technologies N2795A Oscilloscope Probe, Probe Type: Active 1GHz 1:10, Щупы для осциллографа

Keysight Technologies Oscilloscope Probe

The Keysight Technologies N2890A active oscilloscope probe provides up to 1GHz bandwidth and features 1MΩ input resistance and extremely low input capacitance (1pF) provide ultra-low loading of the DUT. This accompanied with superior signal fidelity makes this probe useful for most of today’s digital logic voltages. This probe is equipped with a white LED headlight to illuminate the circuit under test. It is powered directly by the InfiniiVision and Infiniium Autoprobe interface, eliminating the need for an additional power supply.

Features and Benefits

Bandwidth is DC to 1GHz (–3dB)
Attenuation ratio is 10:1
High resistance (1MΩ) and low capacitance (1 pF) input for low loading
Input dynamic ranges between -8V and 8V
Non-destructive Max input voltage ranges -20V and 20V
Offset (typical) is <±1mV

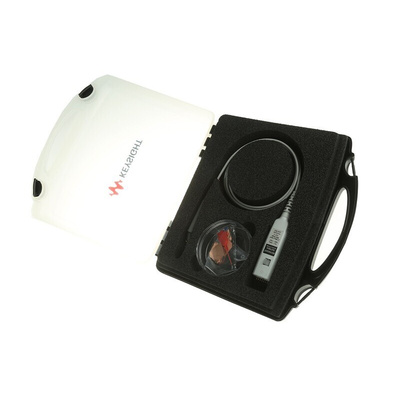

Includes various probe tip accessories
Ambient operating temperature ranges between 0°C and 50 °C
Flatness (typical) is 0.4dB (100kHz to 100MHz), 0.6dB (100MHz to 500MHz), 0.8dB (500kHz to 1GHz), 1.3dB (1GHz to 2GHz)

N2795A/96A Single-ended Active Probes Data Sheet
