Keysight Technologies N2790A Oscilloscope Probe, Probe Type: Differential, High Voltage 100MHz 1.4kV 1:50, 1:500, Щупы для осциллографа

Keysight Technologies Oscilloscope Probe

The Keysight Technologies oscilloscope probe offers conventional earth-grounded Keysight oscilloscopes to be used for floating signal measurements of up to 1400V of differential voltage and 1000V of common-mode voltage. It offers sufficient dynamic range and bandwidth for your application to make the floating measurements found in power electronics circuits safely and accurately.

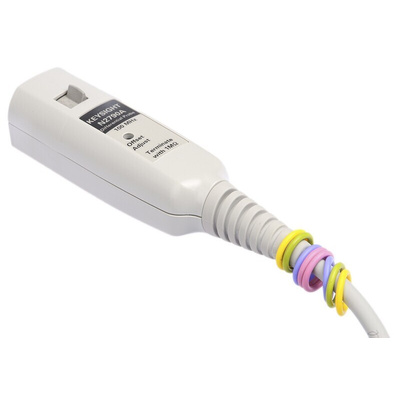

It also has an over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe. It is compatible with InfiniiVision 5000, 6000 (except 100MHz) and 7000 Series (with version 5.26.0001 software), Infiniium 8000, 54830 Series (with version 5.7 software) and Infiniium 9000 Series (with version 2.0 software). Each of these scopes can support four N2790A probes.

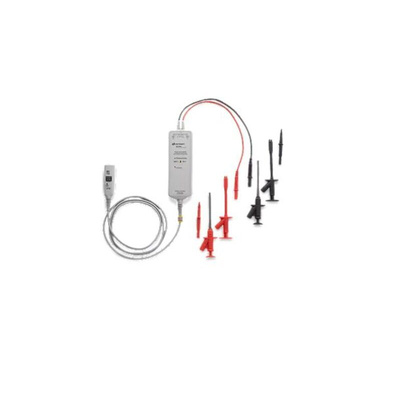

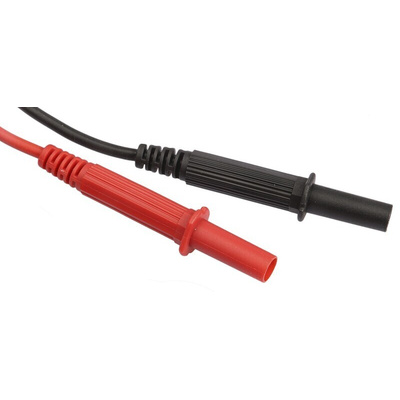

Supplied with browser tips (2), alligator plunger clips (2), pincer clips (2), coloured ID tags (2 off each of 4), DC offset adjustment tool, manual

Features and Benefits

Bandwidth is DC to 100MHz (–3dB)
Attenuation ratio is 50:1/500:1
Input impedance is 4Mohm ll7pF each side to ground
Differential range is (50:1) 140±V (DC + peak AC)
Maximum differential is (500:1) ±1400V (DC + peak AC)
Common mode range is ±1000V (CAT II) or ±600V (CAT III)
Absolute maximum voltage is±1500VDC Peak AC differential mode ±1300Vrms (CAT II) common mode
Offset (typical) is adjustable
Source input impedance is 1Mohm Autoprobe interface
AC CMRR (typical) is -80dB at 50/60Hz and -50dB at 1MHz
Ambient operating temperature ranges between -10°C and 50°C
Power requirement 4xAA cells

Certifications

IEC61010-031
CAT II 1000V, CAT III 600V
